SKU: 6215-2Z/VA228-SKF

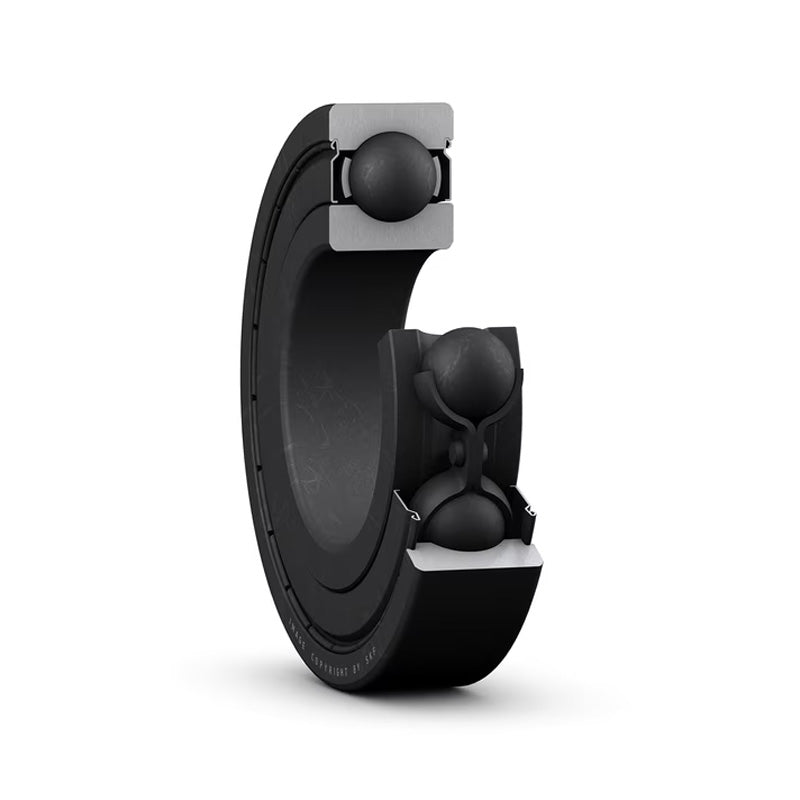

SKF 62152ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 75x130x25mm

Name: SKF 62152ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 75x130x25mm
Brand: SKF
SKU: 6215-2Z/VA228-SKF
Price: 381.99 USD
Availability: InStock

$381.99 ex VAT

Sale Sold out

In stock

Price Break

10+ $255.86

19+ $241.49

29+ $238.62

39+ $235.74

49+ $232.87

74+ $229.99

99+ $215.62

199+ $212.74

249+ $209.87

499+ $206.99

999+ $201.24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF VA228 Series High Temperature Bearings: Differing from the 208 series by the addition of a coronet type graphite cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING
Benefits: High temperature resilience, low maintenance

Brand / Quality:: SKF - High Quality
Inside Diameter:: 75mm
Outside Diameter:: 130mm
Width:: 25mm
Seals / Shields:: Metal Shielded
Clearance:: * Standard

Technical

d	75mm
D	130mm
B	25mm
d1	92mm
D2	117mm
r1r2	1.5mm
Basic load rating Co	49 kN
Weight	1.15 kg
Max operating temp	+350 deg C
Min operating temp	-40 deg C
Recommended max speed	100 rpm
