SKU: 6215/C3VL0241-SKF

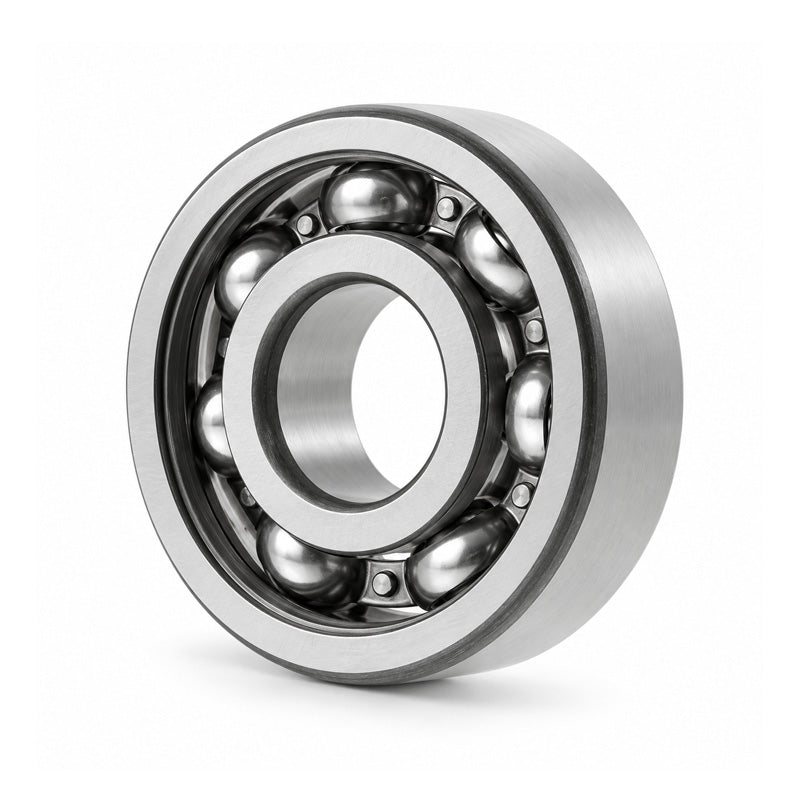

SKF 6215C3VL0241 Insocoat Deep Groove Ball Bearing 75x130x25mm

Name: SKF 6215C3VL0241 Insocoat Deep Groove Ball Bearing 75x130x25mm
Brand: SKF
SKU: 6215/C3VL0241-SKF
Price: 847.74 USD
Availability: InStock

$847.74 ex VAT

Sale Sold out

In stock

Price Break

10+ $567.84

19+ $535.94

29+ $529.56

39+ $523.18

49+ $516.80

74+ $510.42

99+ $478.52

199+ $472.13

249+ $465.75

499+ $459.37

999+ $446.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness)
Benefits: Electrically insulated

Brand / Quality:: SKF - High Quality
Inside Diameter:: 75mm
Outside Diameter:: 130mm
Width:: 25mm
Seals / Shields:: None
Clearance:: C3

Technical

d	75mm
D	130mm
B	25mm
Dynamic load Cr	66.3 kN
Static load Cor	49 kN
Fatigue load limit Pu	2.04 kN
Reference speed	10000 rpm
Limiting speed	6700 rpm
Weight	1.4 kg
d1	92mm
D1	114mm
D2	118mm
r1r2 min	1.5mm
da min	84mm
Da min	121mm
Da max	121mm
ra max	1.5mm
kr	0.025
fo	15
