SKU: 6215-NTN

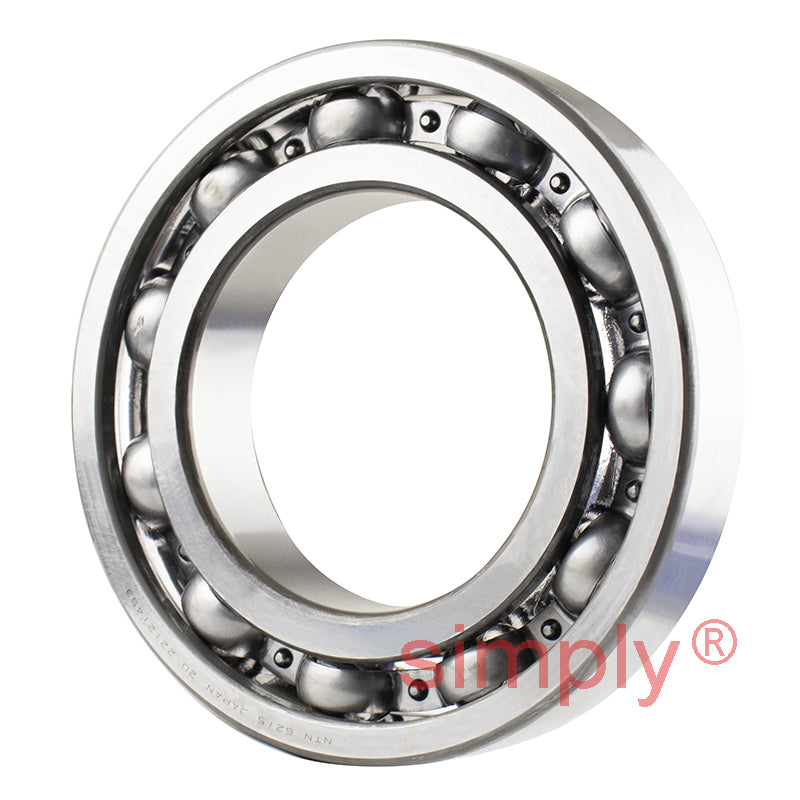

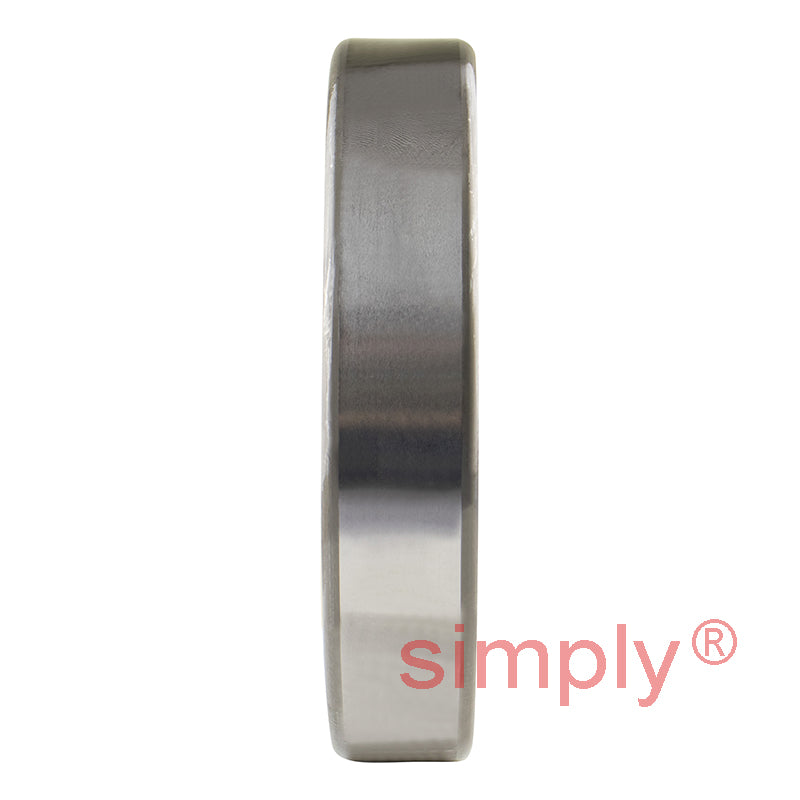

NTN 6215 Open Type Deep Groove Ball Bearing 75x130x25mm

NTN 6215 Open Type Deep Groove Ball Bearing 75x130x25mm
$91.89 ex VAT
$91.89 ex VAT
Sale Sold out

Equivalent to: 6215CM 215K 1215 215S 6215 3215 12A

In stock

Price Break
3+ $61.55
5+ $58.09
10+ $57.40
25+ $56.71
49+ $56.02
74+ $55.33
99+ $51.87
199+ $51.18
249+ $50.49
499+ $49.80
999+ $48.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
75mm
Outside Diameter:
130mm
Width:
25mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 75mm
D 130mm
B 25mm
r<sub>s</sub> min 1.5mm
--- Loads angles and speeds
C<sub>r</sub> 73.5 kN
C<sub>or</sub> 49.5 kN
C<sub>u</sub> 3.8 kN
f<sub>0</sub> 14.7 kN
Grease 4800 rpm
Oil 5600 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 83mm
D<sub>a</sub> Max. 122mm
r<sub>as</sub> Max. 1.5mm
Weight 1.18 kg
