SKU: 6216-NR-C3-FAG

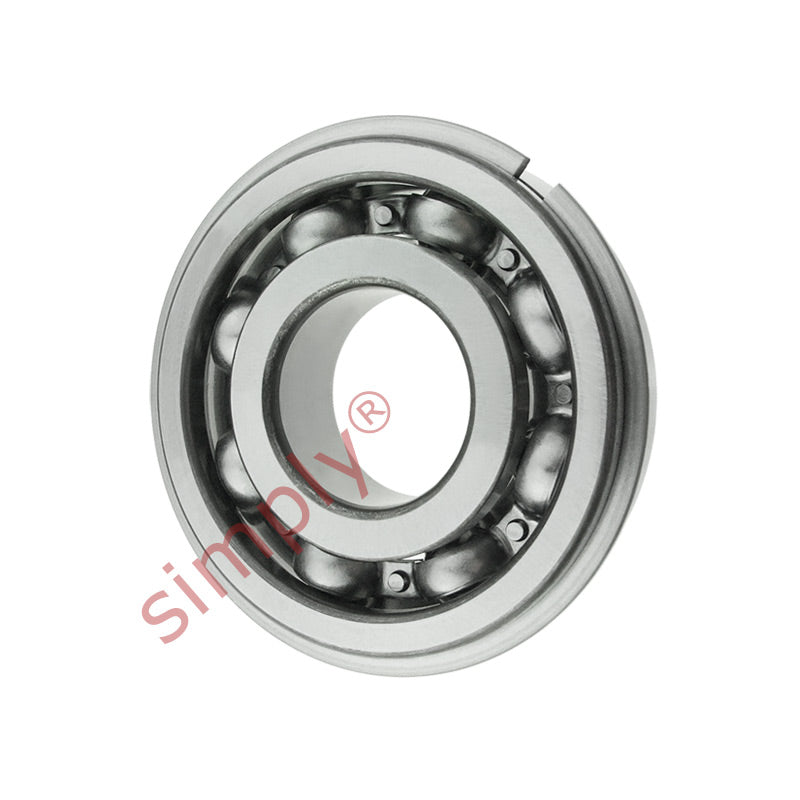

FAG 6216NRC3 Deep Groove Ball Bearing with Snap Ring 80x140x26mm
FAG 6216NRC3 Deep Groove Ball Bearing with Snap Ring 80x140x26mm
Out of stock
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 140mm
- Width:
- 26mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 80mm |
|---|---|
| D | 140mm |
| B | 26mm |
| Dyamic load C | 72.8 kN |
| Static load Co | 55 kN |
| Fatigue load limit Pu | 2.2 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 6000 rpm |
| Mass | 1.45 kg |
| d1 | 101mm |
| d2 | 122mm |
| D2 | 127mm |
| r1r2 min | 2mm |
| da min | 91 |
