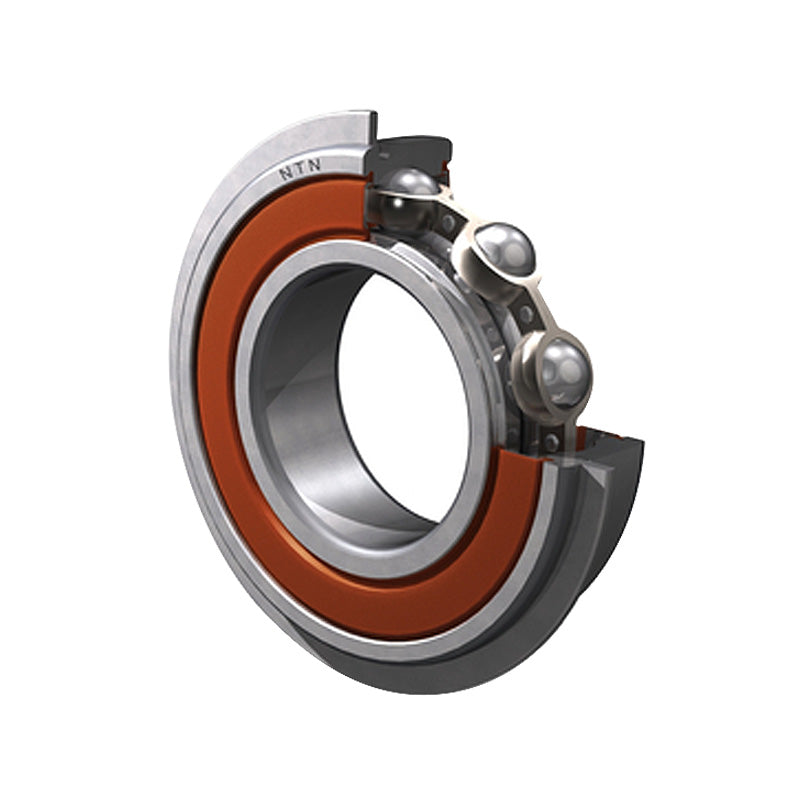

• NTN 6216LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 80x140x26mm
1 1

SKU: 6216LLUNR/2AS-NTN

NTN 6216LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 80x140x26mm

NTN 6216LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 80x140x26mm
$102.23 ex VAT
$102.23 ex VAT
Sale Sold out

Equivalent to: 6216LLUNRCM 6216LLUNR 6216NSENR 6216DUNR 6216RSNR 6216RSHNR 6216PNR 6216RSRNR 6216LUNR 62162NSENR 6216DDUNR 62162RSNR 6216-2RSNR 62162RS1NR 62162RSHNR 6216PPNR 62162RSRNR 6216LLUNR 6216RS2NR 62162RS2NR 62162RSLNR 6216LFSNR 6216EENR Z49516 216SZG

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
MHVCVY8FIO
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
80mm
Outside Diameter:
140mm
Width:
26mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 80mm
D 140mm
B 26mm
r<sub>s</sub> min 2mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 80.5 kN
C<sub>or</sub> 53 kN
C<sub>u</sub> 3.95 kN
f<sub>0</sub> 14.6
--- Fitting Dimensions
Speed 3000rpm
D<sub>1</sub> Max. 135.23mm
a Max. 4.9mm
b Min. 3.1mm
r<sub>o</sub> Max. 0.6mm
