SKU: 6216NR-SKF

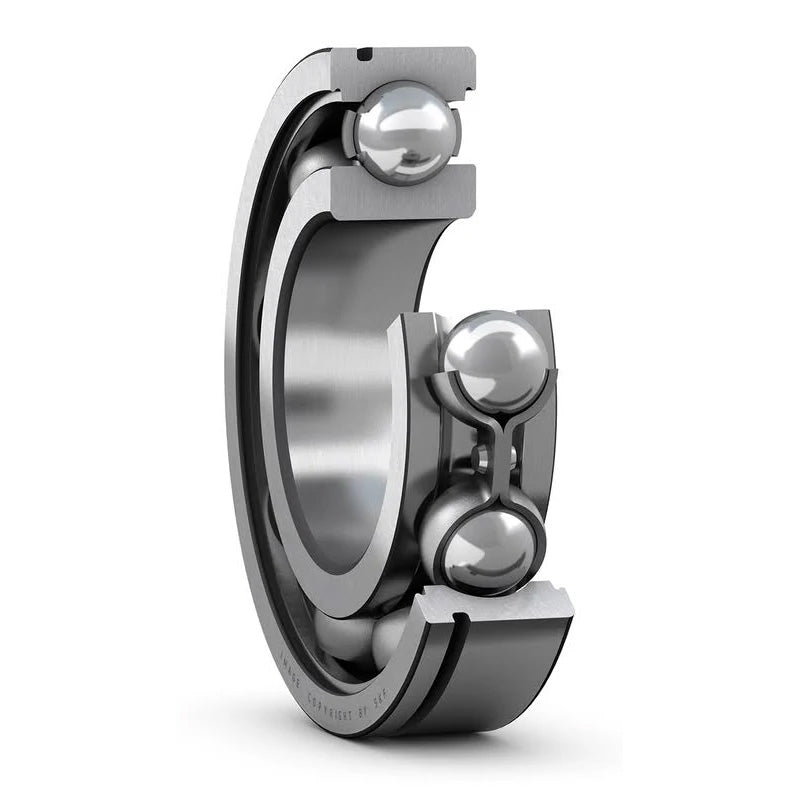

SKF 6216NR Open Type Snap Ring Deep Groove Bearing 80x140x26mm
SKF 6216NR Open Type Snap Ring Deep Groove Bearing 80x140x26mm
Regular price
$304.88
ex VAT
Regular price
Sale price
$304.88
ex VAT
In stock
Price Break
4+
$204.22
10+
$192.75
20+
$190.45
30+
$188.16
50+
$185.86
75+
$183.57
100+
$172.09
200+
$169.80
250+
$167.51
500+
$165.21
1000+
$160.62
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 140mm
- Width:
- 26mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 80mm |
|---|---|
| D | 140mm |
| B | 26mm |
| Dynamic load C | 72.8 kN |
| Static load Co | 55 kN |
| Fatigue load limit Pu | 2.2 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 6000 rpm |
| Weight | 1.45kg |
| Snap ring | SP 140 |
| d1 | 101mm |
| D2 | 127mm |
| D3 | 135.23mm |
| D4 | 149.7mm |
| b | 3.1mm |
| f | 2.82mm |
| C | 4.9mm |
| r1r2 min | 2mm |
| ro max | 0.6mm |
| da min | 91mm |
| Da max | 129mm |
| Db min | 151mm |
| ba min | 3.5mm |
| Ca max | 7.72mm |
| ra max | 2mm |
| Calc Factor kr | 0.025 |
| fo | 15 |
