SKU: 6217-NTN

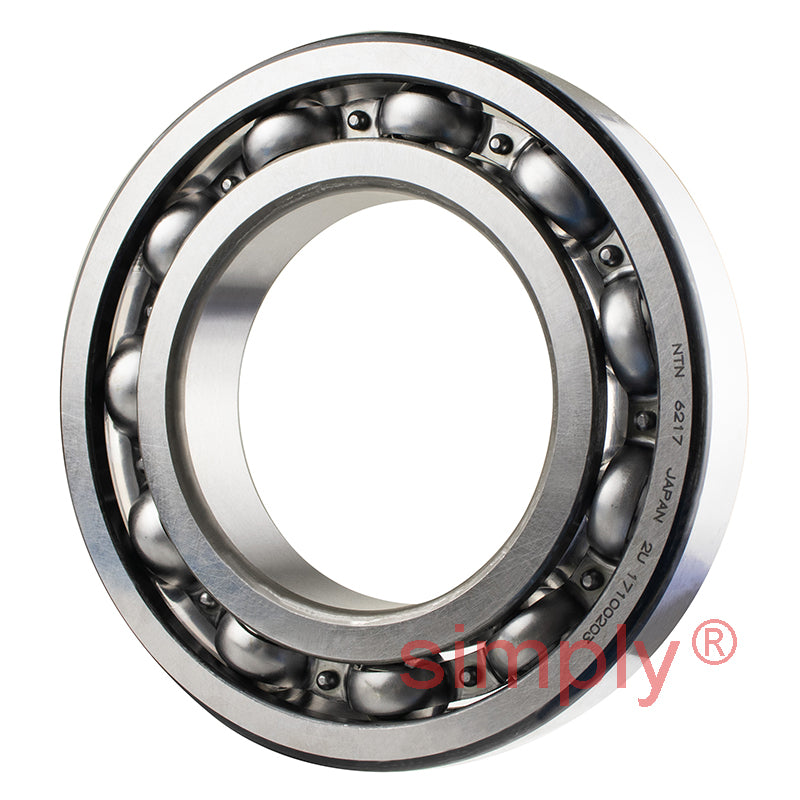

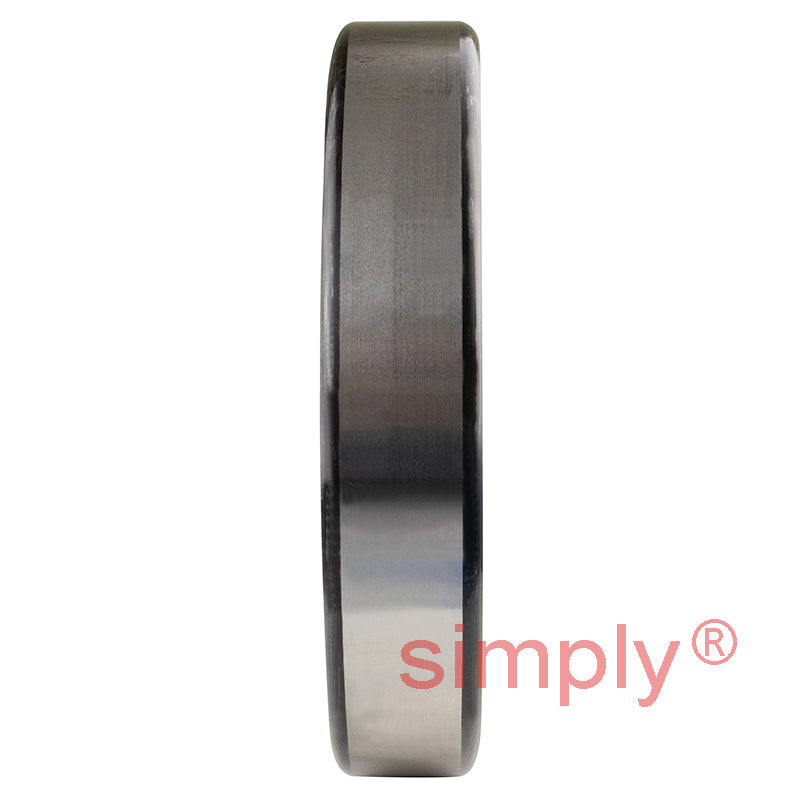

NTN 6217 Open Type Deep Groove Ball Bearing 85x150x28mm

NTN 6217 Open Type Deep Groove Ball Bearing 85x150x28mm
$135.04 ex VAT
$135.04 ex VAT
Sale Sold out

Equivalent to: 6217CM 217K 1217 217S 6217 3217 14A

In stock

Price Break
3+ $90.45
5+ $85.37
10+ $84.35
25+ $83.34
49+ $82.32
74+ $81.30
99+ $76.22
199+ $75.21
249+ $74.19
499+ $73.17
999+ $71.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
85mm
Outside Diameter:
150mm
Width:
28mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 85mm
D 150mm
B 28mm
r<sub>s</sub> min 2mm
--- Loads angles and speeds
C<sub>r</sub> 92 kN
C<sub>or</sub> 64 kN
C<sub>u</sub> 4.6 kN
f<sub>0</sub> 14.7 kN
Grease 4200 rpm
Oil 5000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 94mm
D<sub>a</sub> Max. 141mm
r<sub>as</sub> Max. 2mm
Weight 1.79 kg
