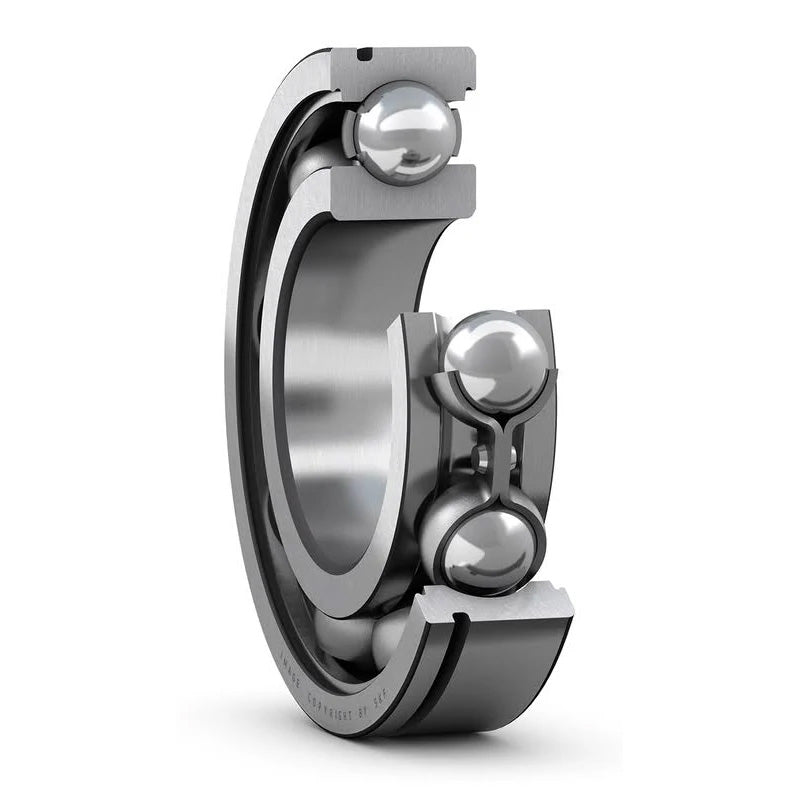

SKF 6217NRC3 Open Type Snap Ring Deep Groove Bearing 85x150x28mm
SKF 6217NRC3 Open Type Snap Ring Deep Groove Bearing 85x150x28mm
Regular price
$434.64
ex VAT
Regular price
Sale price
$434.64
ex VAT
In stock
Price Break
4+
$291.14
10+
$274.78
20+
$271.51
30+
$268.24
50+
$264.97
75+
$261.69
100+
$245.34
200+
$242.07
250+
$238.80
500+
$235.52
1000+
$228.98
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 150mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 85mm |
|---|---|
| D | 150mm |
| B | 28mm |
| Dynamic load C | 87.1 kN |
| Static load Co | 64 kN |
| Fatigue load limit Pu | 2.5 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 5600 rpm |
| Weight | 1.8kg |
| Snap ring | SP 150 |
| d1 | 106mm |
| D2 | 135mm |
| D3 | 145.24mm |
| D4 | 159.7mm |
| b | 3.1mm |
| f | 2.82mm |
| C | 4.9mm |
| r1r2 min | 2mm |
| ro max | 0.6mm |
| da min | 96mm |
| Da max | 139mm |
| Db min | 162mm |
| ba min | 3.5mm |
| Ca max | 7.72mm |
| ra max | 2mm |
| Calc Factor kr | 0.025 |
| fo | 15 |
