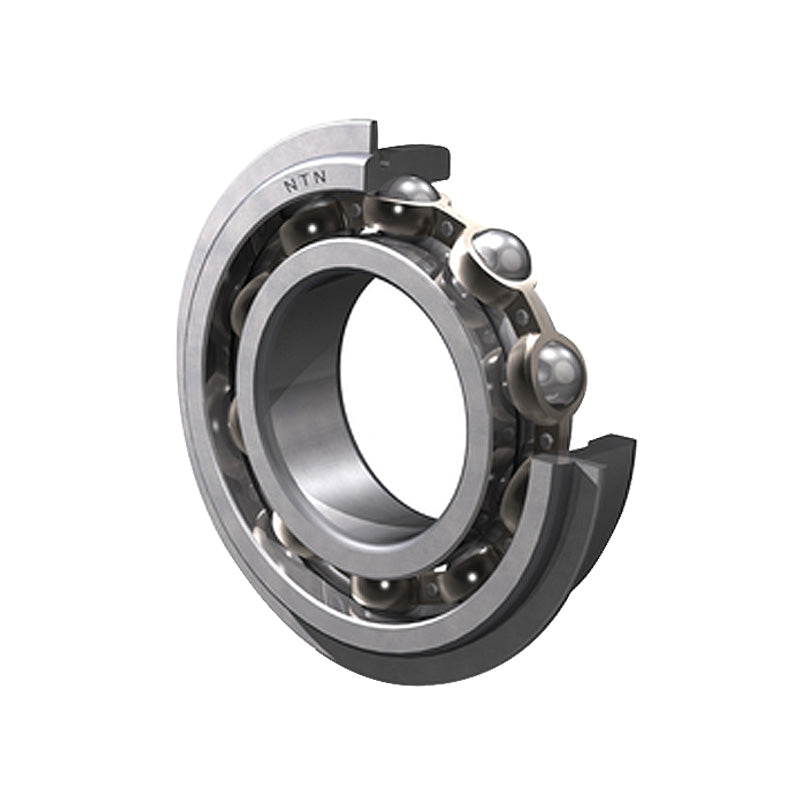

• NTN 6217NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 85x150x28mm
  • NTN
1 2

SKU: 6217NRC3-NTN

NTN 6217NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 85x150x28mm

NTN 6217NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 85x150x28mm
$402.91 ex VAT
$402.91 ex VAT
Sale Sold out

Equivalent to: 217KGC3 217SGC3 43217C3

In stock

Price Break
3+ $269.88
5+ $254.72
10+ $251.69
25+ $248.66
49+ $245.62
74+ $242.59
99+ $227.43
199+ $224.40
249+ $221.37
499+ $218.33
999+ $212.27

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
85mm
Outside Diameter:
150mm
Width:
28mm
Seals / Shields:
None
Clearance:
C3
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 85mm
D 150mm
B 28mm
r<sub>s</sub> min 2mm
rNS Min. 0.5mm
--- Loads angles and speeds
C<sub>r</sub> 92 kN
C<sub>or</sub> 64 kN
C<sub>u</sub> 4.6 kN
f<sub>0</sub> 14.7 kN
Grease 4200 rpm
Oil 5000 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 145.24mm
a Max. 4.9mm
b Min. 3.1mm
r<sub>o</sub> Max. 0.6mm
D<sub>2</sub> Max. 159.7mm
f Max. 2.82mm
--- Fitting Dimensions
d<sub>a</sub> Min. 94mm
d<sub>a</sub> Max. 103mm
D<sub>a</sub> Max. 141mm
D<sub>X</sub> (approx) 162mm
C<sub>Y</sub> Max. 7.3mm
C<sub>Z</sub> Min. 2.9mm
r<sub>as</sub> Max. 2mm
r<sub>Nas</sub> Max. 0.5mm
Weight 1.79 kg
