SKU: 6220/C3VL0241-SKF

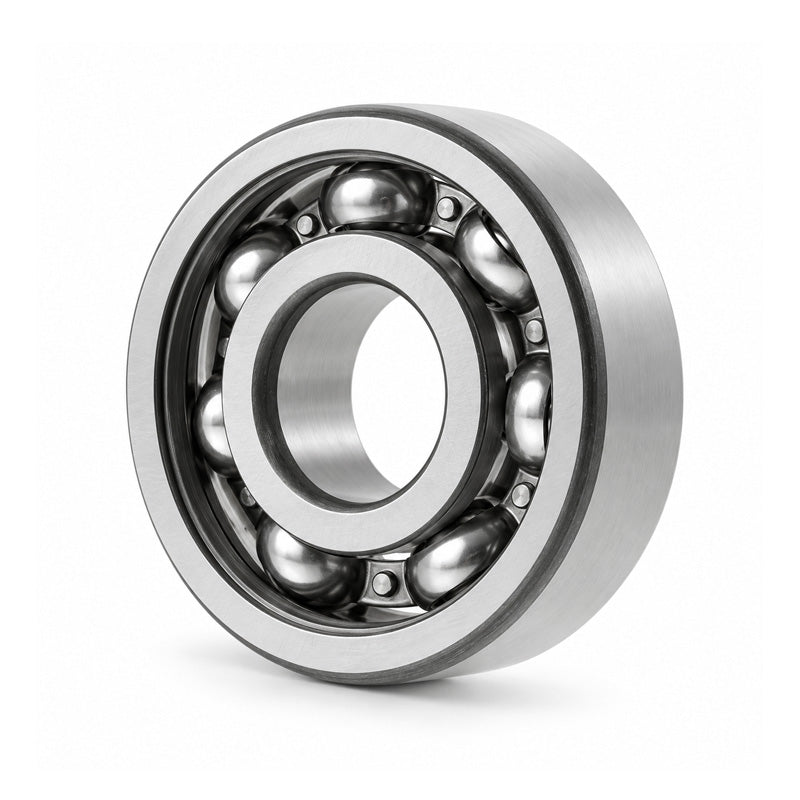

SKF 6220C3VL0241 Insocoat Deep Groove Ball Bearing 100x180x34mm

Name: SKF 6220C3VL0241 Insocoat Deep Groove Ball Bearing 100x180x34mm
Brand: SKF
SKU: 6220/C3VL0241-SKF
Price: 1563.96 USD
Availability: InStock

$1,563.96 ex VAT

Sale Sold out

In stock

Price Break

10+ $1,047.58

19+ $988.73

29+ $976.96

39+ $965.19

49+ $953.42

74+ $941.65

99+ $882.79

199+ $871.02

249+ $859.25

499+ $847.48

999+ $823.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness)
Benefits: Electrically insulated

Brand / Quality:: SKF - High Quality
Inside Diameter:: 100mm
Outside Diameter:: 180mm
Width:: 34mm
Seals / Shields:: None
Clearance:: C3

Technical

d	100mm
D	180mm
B	34mm
Dynamic load Cr	124 kN
Static load Cor	93 kN
Fatigue load limit Pu	3.35 kN
Reference speed	7500 rpm
Limiting speed	4800 rpm
Weight	3.15 kg
d1	125mm
D1	155mm
D2	160mm
r1r2 min	2.1mm
da min	112mm
Da min	165mm
Da max	168mm
ra max	2mm
kr	0.025
fo	14
