• NTN 6220 Open Type Deep Groove Ball Bearing 100x180x34mm
  • NTN 6220 Open Type Deep Groove Ball Bearing 100x180x34mm
  • NTN 6220 Open Type Deep Groove Ball Bearing 100x180x34mm
  • NTN
1 4

SKU: 6220-NTN

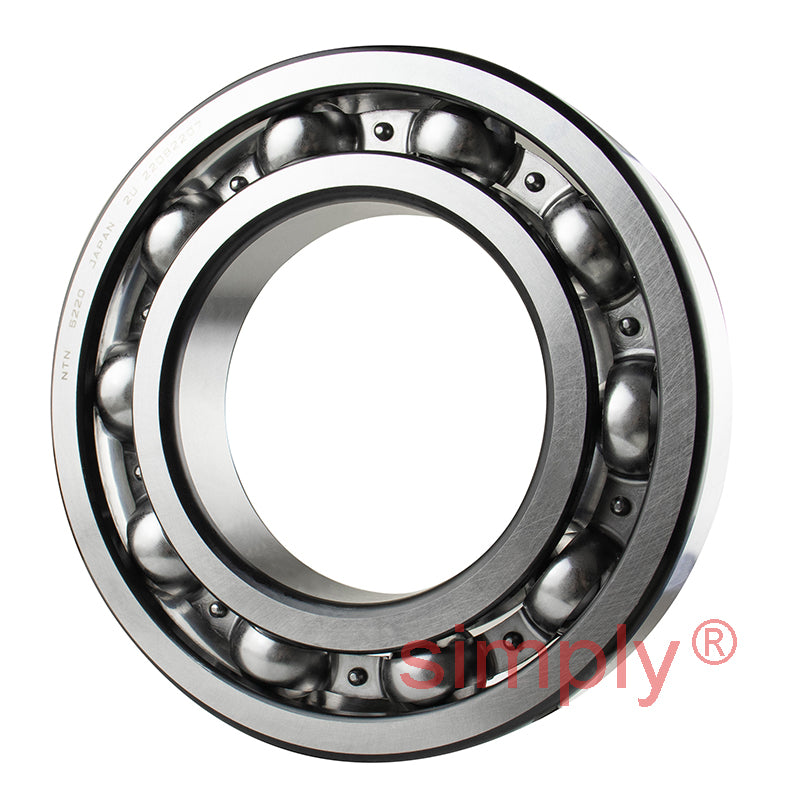

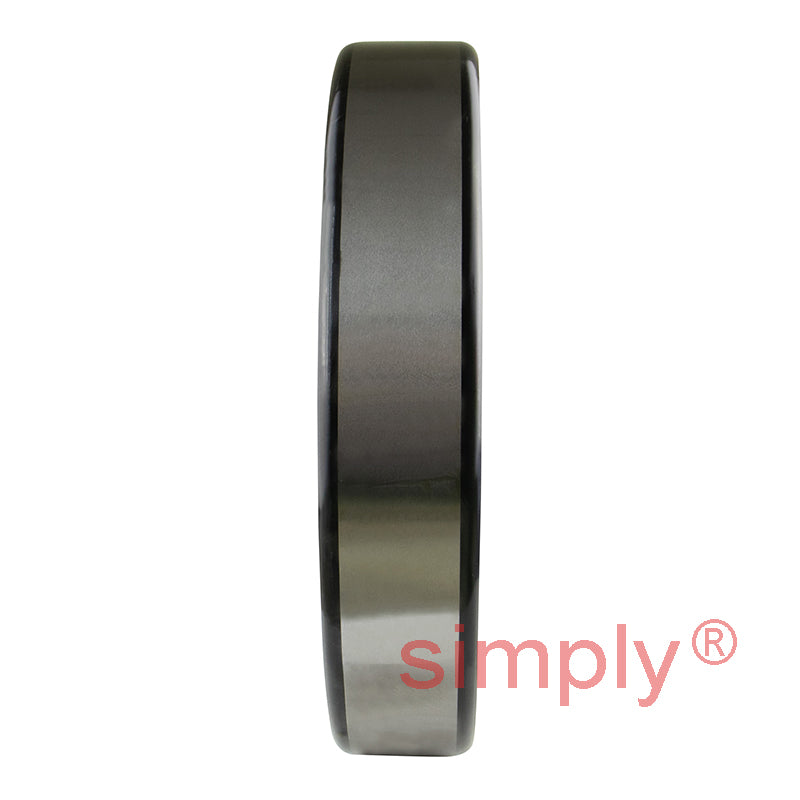

NTN 6220 Open Type Deep Groove Ball Bearing 100x180x34mm

NTN 6220 Open Type Deep Groove Ball Bearing 100x180x34mm
$240.59 ex VAT
$240.59 ex VAT
Sale Sold out

Equivalent to: 6220CM 220K 1220 220S 6220 3220 17A 100BC02

In stock

Price Break
3+ $161.15
5+ $152.10
10+ $150.29
25+ $148.48
49+ $146.67
74+ $144.86
99+ $135.80
199+ $133.99
249+ $132.18
499+ $130.37
999+ $126.75

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
100mm
Outside Diameter:
180mm
Width:
34mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 100mm
D 180mm
B 34mm
r<sub>s</sub> min 2.1mm
--- Loads angles and speeds
C<sub>r</sub> 135 kN
C<sub>or</sub> 93 kN
C<sub>u</sub> 6.15 kN
f<sub>0</sub> 14.4 kN
Grease 3500 rpm
Oil 4200 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 111mm
D<sub>a</sub> Max. 169mm
r<sub>as</sub> Max. 2mm
Weight 3.14 kg
