SKU: 62200-2RS1-SKF

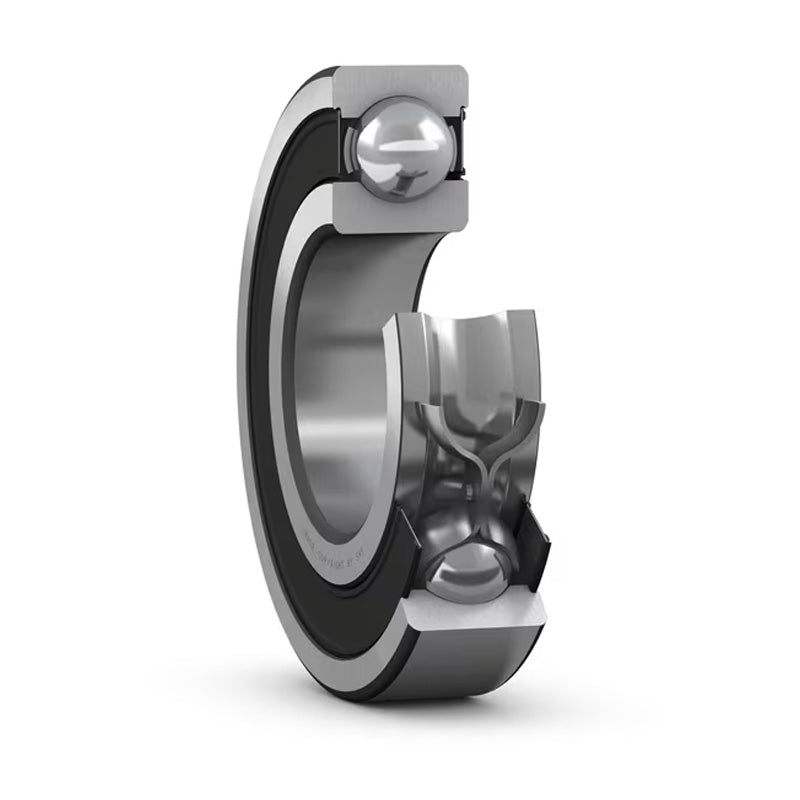

SKF 622002RS1 Rubber Sealed Deep Groove Ball Bearing 10x30x14mm
SKF 622002RS1 Rubber Sealed Deep Groove Ball Bearing 10x30x14mm
Regular price
$22.16
ex VAT
Regular price
Sale price
$22.16
ex VAT
Equivalent to: 62200NSE 62200DU 62200RS 62200RSH 62200P 62200RSR 62200LU 622002NSE 62200DDU 622002RS 622002RSH 62200PP 622002RSR 62200LLU
In stock
Price Break
4+
$14.84
10+
$14.01
20+
$13.84
30+
$13.67
50+
$13.51
75+
$13.34
100+
$12.51
200+
$12.34
250+
$12.17
500+
$12.01
1000+
$11.67
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 10mm |
|---|---|
| D | 30mm |
| B | 14mm |
| Dynamic load C | 5.07 kN |
| Static load Co | 2.36 kN |
| Fatigue load limit Pu | 0.1 kN |
| Reference speed | 56000 rpm |
| Limiting speed | 17000 rpm |
| Weight | 0.04 kg |
| d1 | 17.5mm |
| D2 | 28.7mm |
| r1r2 min | 0.6mm |
| da min | 14.2mm |
| Da max | 30.8mm |
| ra max | 0.6mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 11 |
