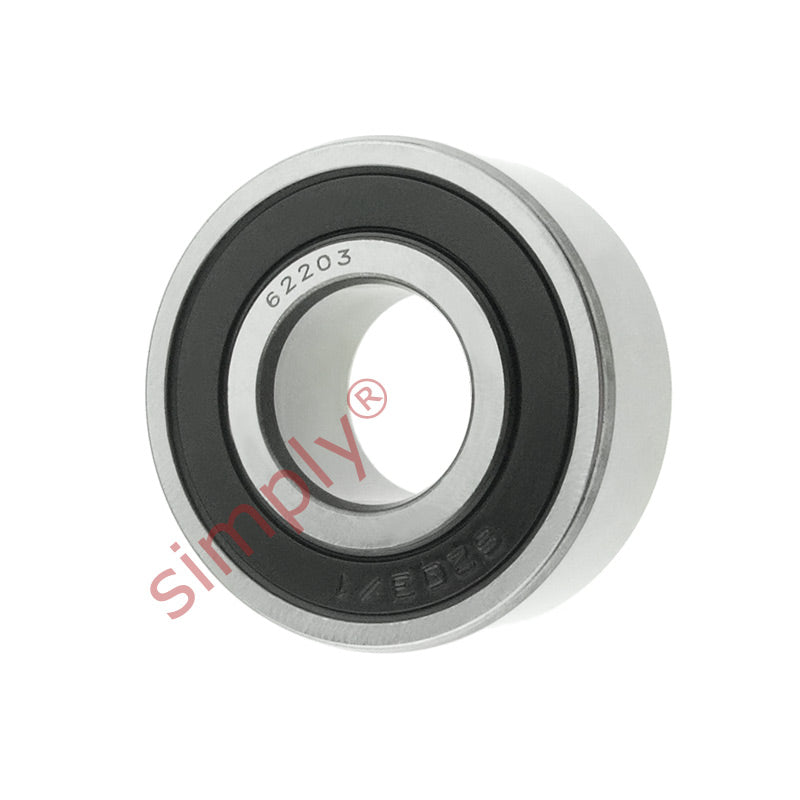

• NKE 622032RS1 Rubber Sealed Deep Groove Ball Bearing 17x40x16mm
  • NKE
1 2

SKU: 62203-2RS2-NKE

NKE 622032RS1 Rubber Sealed Deep Groove Ball Bearing 17x40x16mm

NKE 622032RS1 Rubber Sealed Deep Groove Ball Bearing 17x40x16mm
$12.10 ex VAT
$12.10 ex VAT
Sale Sold out

Equivalent to: 62203NSE 62203DU 62203RS 62203RSH 62203P 62203RSR 62203LU 622032NSE 62203DDU 622032RS 622032RSH 62203PP 622032RSR 62203LLU

In stock

Price Break
4+ $8.11
10+ $7.66
20+ $7.56
30+ $7.47
50+ $7.38
75+ $7.29
100+ $6.83
200+ $6.74
250+ $6.65
500+ $6.56
1000+ $6.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NKE - High Quality
Inside Diameter:
17mm
Outside Diameter:
40mm
Width:
16mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 17mm
D 40mm
B 16mm
Dynamic load C 9.56 kN
Static load Co 4.75 kN
Fatigue load limit Pu 0.2 kN
Reference speed 38000 rpm
Limiting speed 12000 rpm
Weight 0.083 kg
d1 24.5mm
D2 35mm
r1r2 min 0.6mm
da min 21.2mm
Da max 35.8mm
ra max 0.6mm
Calculation factor kr 0.025
Calculation factor f0 13
