SKU: 6221-2RS1-SKF

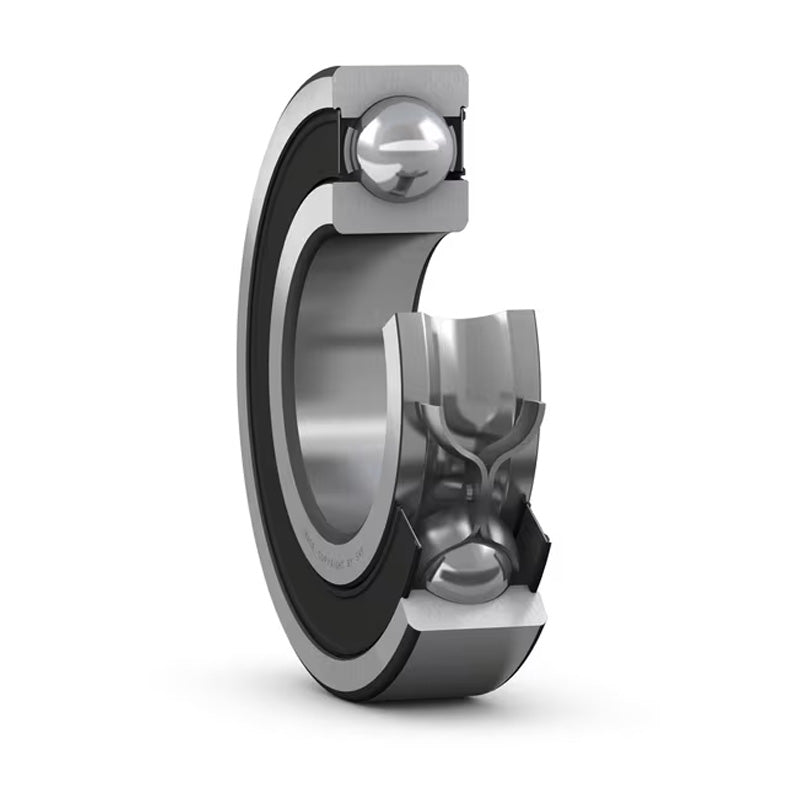

SKF 62212RS1 Rubber Sealed Deep Groove Ball Bearing 105x190x36mm
SKF 62212RS1 Rubber Sealed Deep Groove Ball Bearing 105x190x36mm
Equivalent to: 6221NSE 6221DU 6221RS 6221RSH 6221P 6221RSR 6221LU 62212NSE 6221DDU 62212RS 62212RSH 6221PP 62212RSR 6221LLU
Out of stock
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 190mm
- Width:
- 36mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 105mm |
|---|---|
| D | 190mm |
| B | 36mm |
| Dynamic load C | 140 kN |
| Static load Co | 104 kN |
| Fatigue load limit Pu | 3.65 kN |
| Reference speed | 7000 rpm |
| Limiting speed | 2200 rpm |
| Weight | 3.7 kg |
| d2 | 125mm |
| D2 | 167mm |
| r1r2 min | 2.1mm |
| da min | 117mm |
| da max | 124mm |
| Da max | 178mm |
| ra max | 2mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
