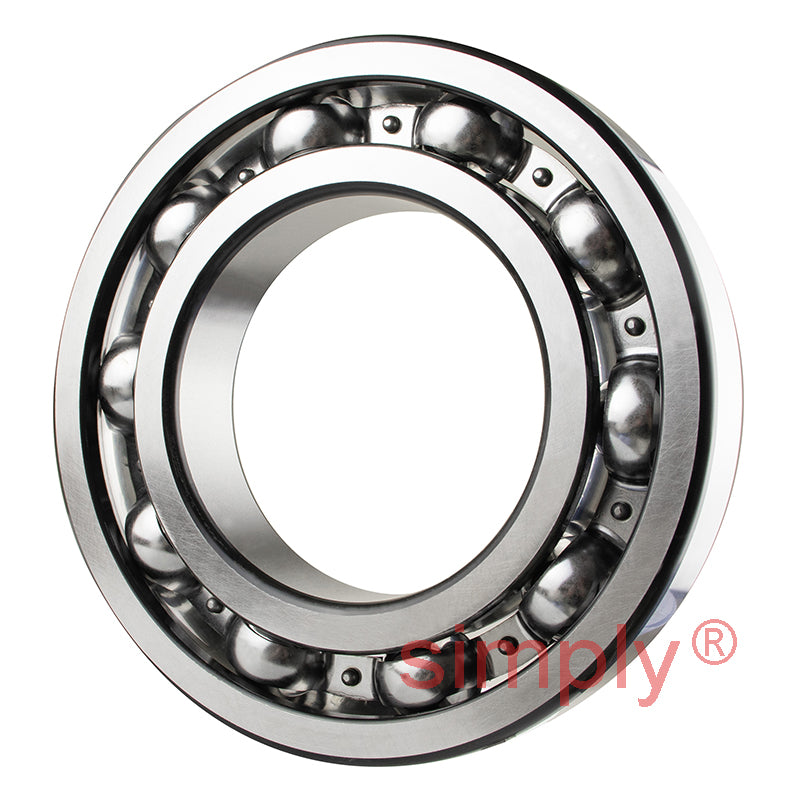

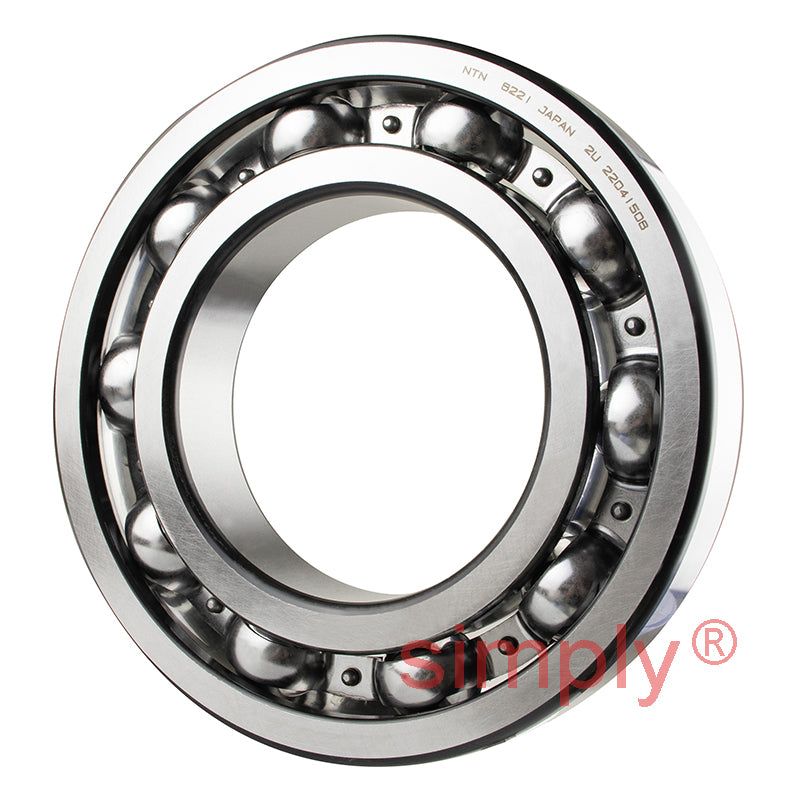

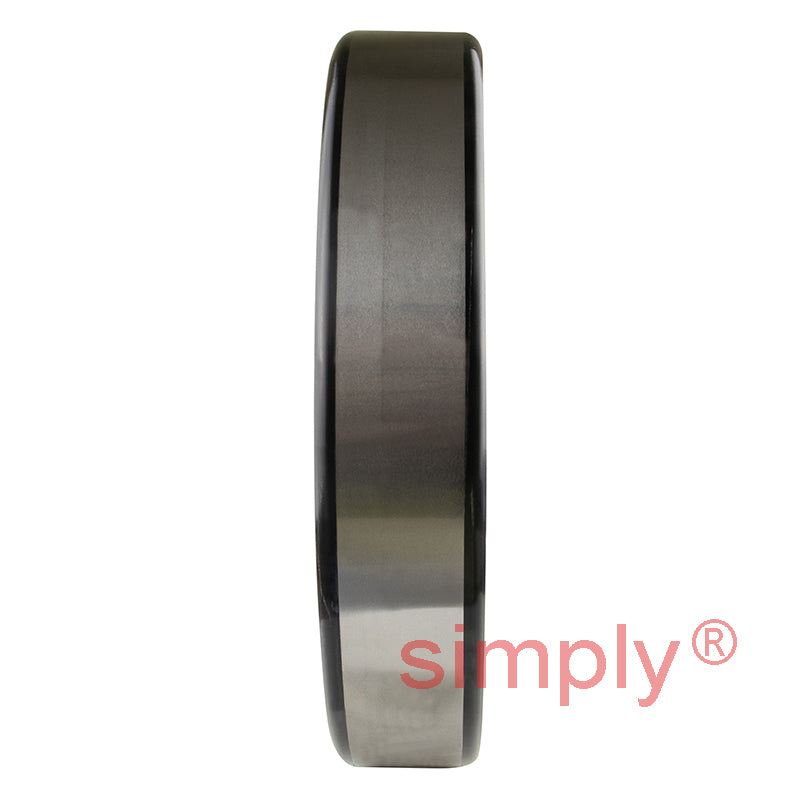

• NTN 6221 Open Type Deep Groove Ball Bearing 105x190x36mm
  • NTN 6221 Open Type Deep Groove Ball Bearing 105x190x36mm
  • NTN 6221 Open Type Deep Groove Ball Bearing 105x190x36mm
  • NTN
1 4

SKU: 6221-NTN

NTN 6221 Open Type Deep Groove Ball Bearing 105x190x36mm

NTN 6221 Open Type Deep Groove Ball Bearing 105x190x36mm
$289.51 ex VAT
$289.51 ex VAT
Sale Sold out

Equivalent to: 6221CM 221K 1221 221S 6221 3221 18A 105BC02

In stock

Price Break
3+ $193.92
5+ $183.03
10+ $180.85
25+ $178.67
49+ $176.49
74+ $174.31
99+ $163.42
199+ $161.24
249+ $159.06
499+ $156.88
999+ $152.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
105mm
Outside Diameter:
190mm
Width:
36mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 105mm
D 190mm
B 36mm
r<sub>s</sub> min 2.1mm
--- Loads angles and speeds
C<sub>r</sub> 147 kN
C<sub>or</sub> 105 kN
C<sub>u</sub> 6.75 kN
f<sub>0</sub> 14.4 kN
Grease 3400 rpm
Oil 4000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 116mm
D<sub>a</sub> Max. 179mm
r<sub>as</sub> Max. 2mm
Weight 3.7 kg
