SKU: 62211-2RS1/C3-SKF

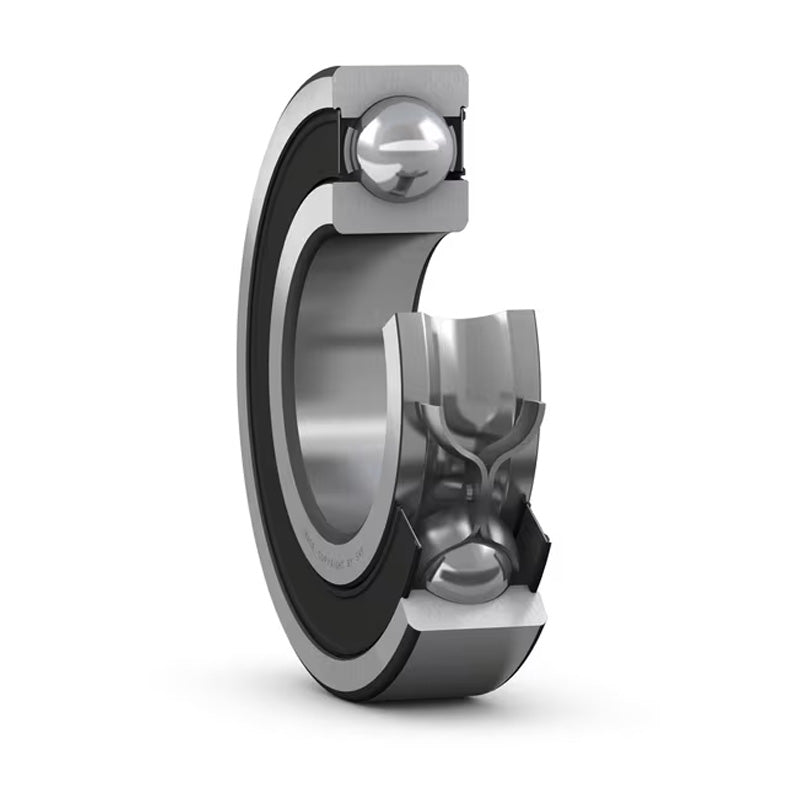

SKF 622112RS1C3 Rubber Sealed Deep Groove Ball Bearing 55x100x25mm
SKF 622112RS1C3 Rubber Sealed Deep Groove Ball Bearing 55x100x25mm
Equivalent to: 62211NSEC3 62211DUC3 62211RSC3 62211RSHC3 62211PC3 62211RSRC3 62211LUC3 622112NSEC3 62211DDUC3 622112RSC3 622112RSHC3 62211PPC3 622112RSRC3 62211LLU
Out of stock
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load C | 43.6 kN |
| Static load Co | 29 kN |
| Fatigue load limit Pu | 1.25 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 4300 rpm |
| Weight | 0.7 kg |
| d1 | 69.1mm |
| D2 | 89.4mm |
| r1r2 min | 1.5mm |
| da min | 64mm |
| Da max | 91mm |
| ra max | 1.5mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
