SKU: 62213-2RS1-SKF

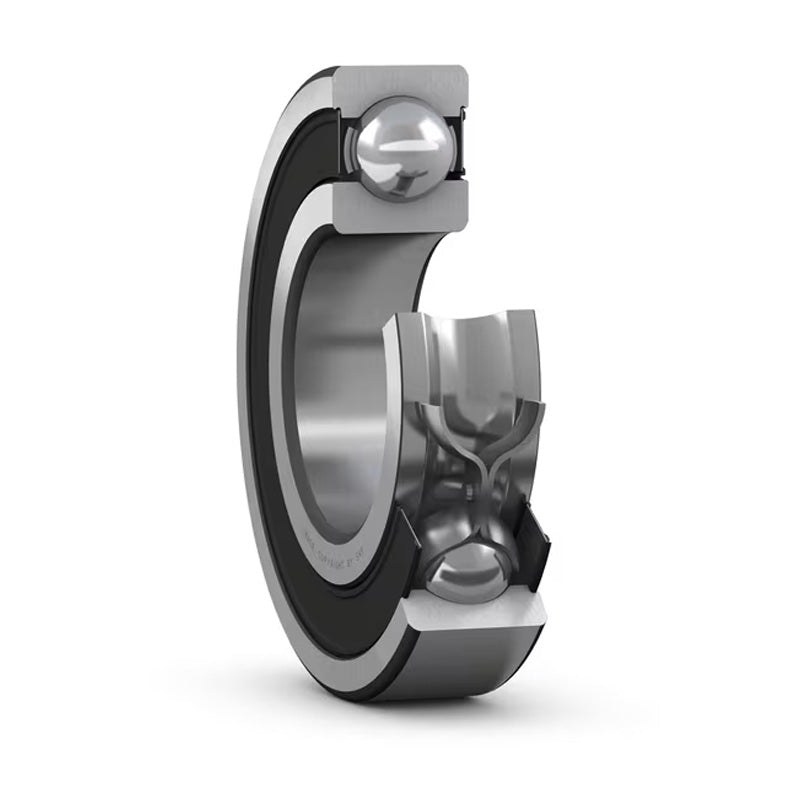

SKF 622132RS1 Rubber Sealed Deep Groove Ball Bearing 65x120x31mm
SKF 622132RS1 Rubber Sealed Deep Groove Ball Bearing 65x120x31mm
Regular price
$272.69
ex VAT
Regular price
Sale price
$272.69
ex VAT
Equivalent to: 62213NSE 62213DU 62213RS 62213RSH 62213P 62213RSR 62213LU 622132NSE 62213DDU 622132RS 622132RSH 62213PP 622132RSR 62213LLU
In stock
Price Break
4+
$182.66
10+
$172.40
20+
$170.35
30+
$168.29
50+
$166.24
75+
$164.19
100+
$153.93
200+
$151.87
250+
$149.82
500+
$147.77
1000+
$143.66
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 31mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 120mm |
| B | 31mm |
| Dynamic load C | 55.9 kN |
| Static load Co | 40.5 kN |
| Fatigue load limit Pu | 1.73 kN |
| Reference speed | 12000 rpm |
| Limiting speed | 3600 rpm |
| Weight | 1.25 kg |
| d1 | 83.3mm |
| D2 | 106mm |
| r1r2 min | 1.5mm |
| da min | 74mm |
| Da max | 111mm |
| ra max | 1.5mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 15 |
