SKU: 6222-NTN

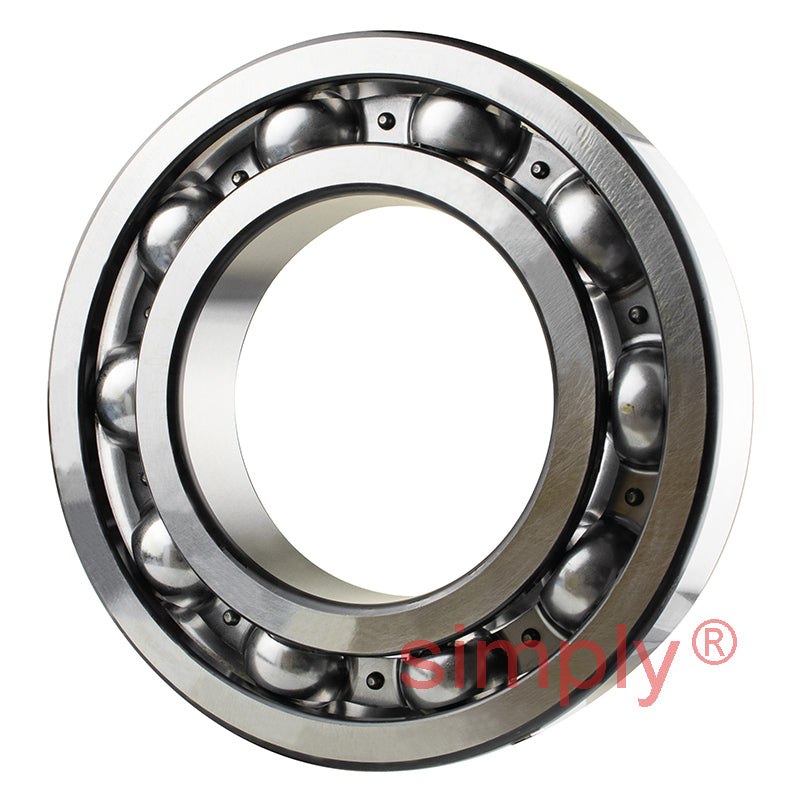

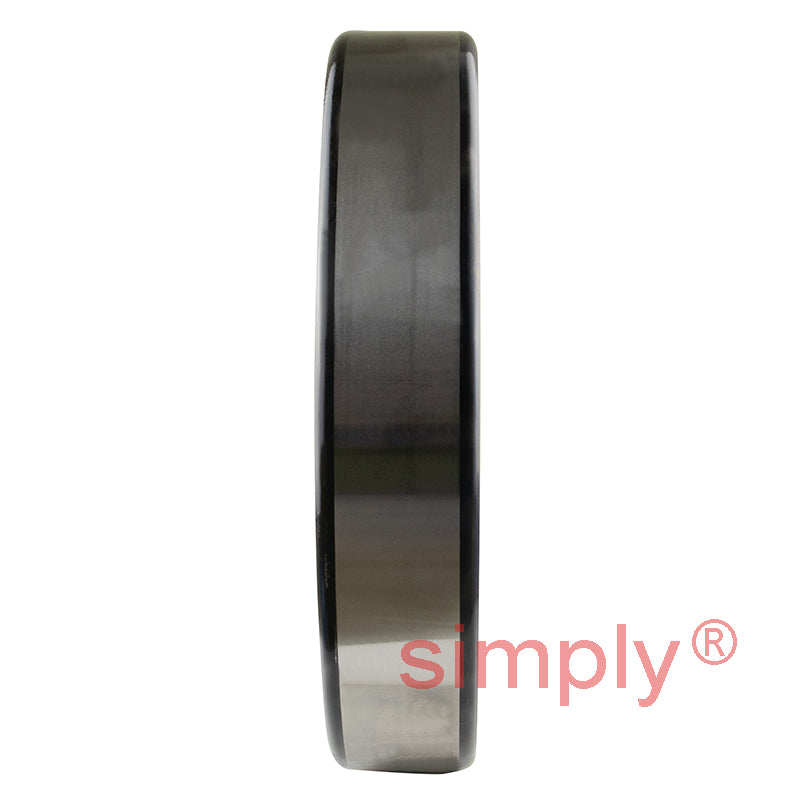

NTN 6222 Open Type Deep Groove Ball Bearing 110x200x38mm

NTN 6222 Open Type Deep Groove Ball Bearing 110x200x38mm
$338.41 ex VAT
$338.41 ex VAT
Sale Sold out

Equivalent to: 6222CM 222K 1222 222S 6222 3222 19A 110BC02

In stock

Price Break
3+ $226.67
5+ $213.94
10+ $211.39
25+ $208.85
49+ $206.30
74+ $203.75
99+ $191.02
199+ $188.47
249+ $185.92
499+ $183.38
999+ $178.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
110mm
Outside Diameter:
200mm
Width:
38mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 110mm
D 200mm
B 38mm
r<sub>s</sub> min 2.1mm
--- Loads angles and speeds
C<sub>r</sub> 160 kN
C<sub>or</sub> 117 kN
C<sub>u</sub> 7.35 kN
f<sub>0</sub> 14.3 kN
Grease 3200 rpm
Oil 3800 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 121mm
D<sub>a</sub> Max. 189mm
r<sub>as</sub> Max. 2mm
Weight 4.36 kg
