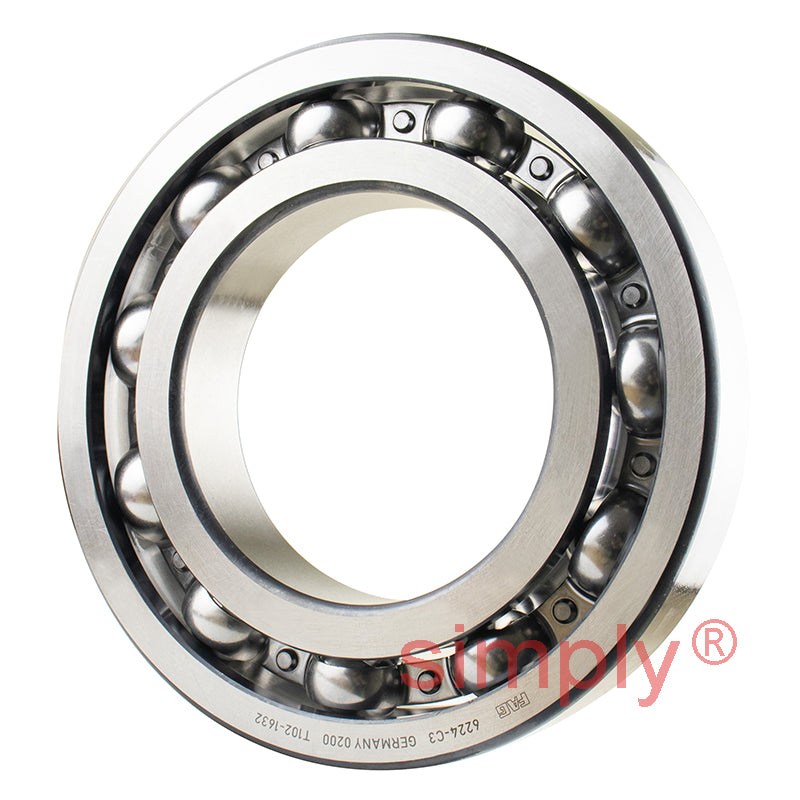

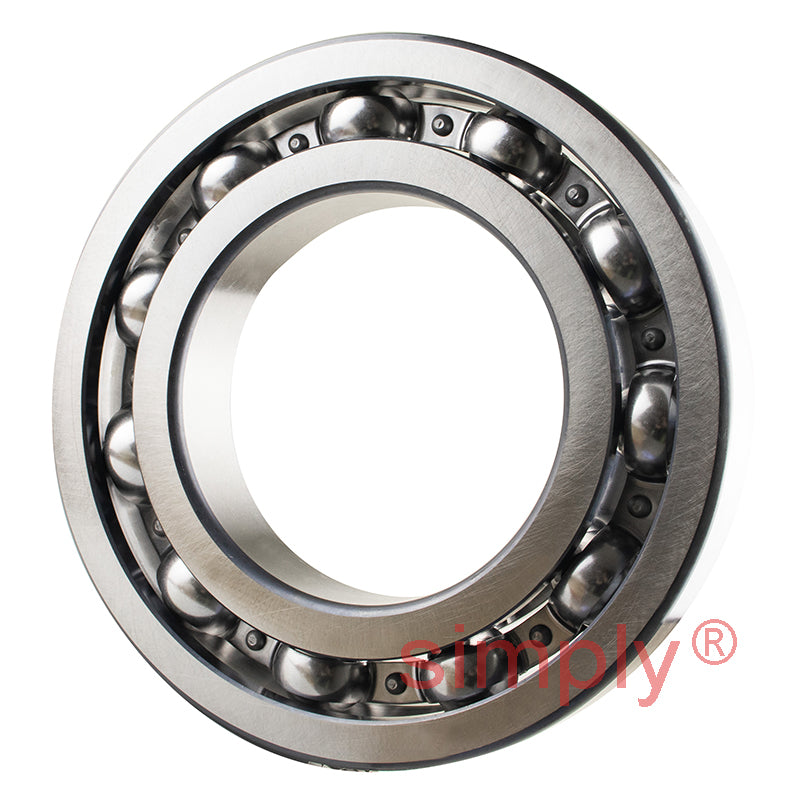

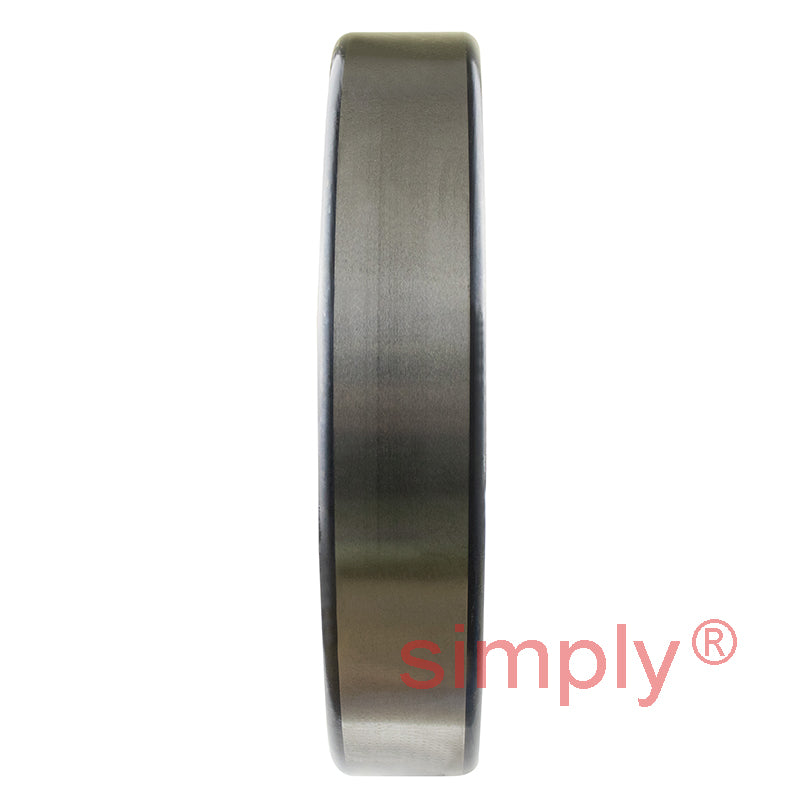

• Major Branded 6224C3 Open Deep Groove Ball Bearing 120x215x40mm
  • Major Branded 6224C3 Open Deep Groove Ball Bearing 120x215x40mm
  • Major Branded 6224C3 Open Deep Groove Ball Bearing 120x215x40mm
1 3

SKU: 6224/C3-MB

Major Branded 6224C3 Open Deep Groove Ball Bearing 120x215x40mm

Major Branded 6224C3 Open Deep Groove Ball Bearing 120x215x40mm
$326.43 ex VAT
$326.43 ex VAT
Sale Sold out

Equivalent to: 6224 6224C3

In stock

Price Break
10+ $218.65
19+ $206.37
29+ $203.91
39+ $201.46
49+ $199.00
74+ $196.54
99+ $184.26
199+ $181.80
249+ $179.34
499+ $176.89
999+ $171.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
120mm
Outside Diameter:
215mm
Width:
40mm
Seals / Shields:
None
Clearance:
C3
Technical
d 120mm
D 215mm
B 40mm
Dynamic load C 146 kN
Static load Co 118 kN
Fatigue load limit Pu 3.9 kN
Reference speed 6300 rpm
Limiting speed 4000 rpm
Mass 5.15 kg
d1 151mm
D1 184mm
D2 189mm
r1r2 min 2.1mm
da min 132mm
Da max 203mm
ra max 2mm
Calc factor Kr 0.025
Calc factor 14
