SKU: 6224-ZZ/C3-NACHI

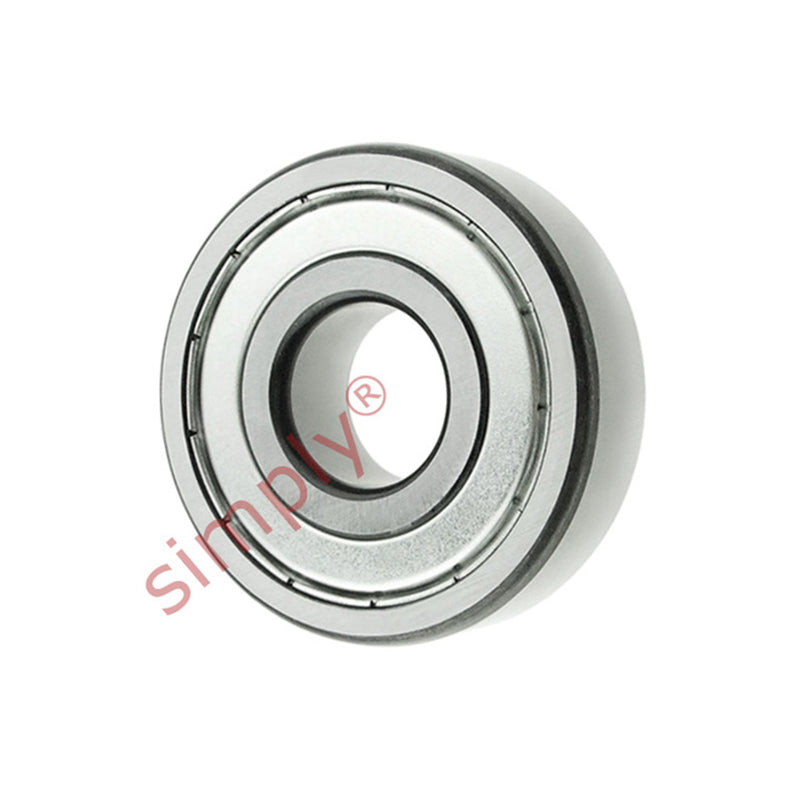

NACHI 6224ZZC3 Metal Shielded Deep Groove Ball Bearing 120x215x40mm
NACHI 6224ZZC3 Metal Shielded Deep Groove Ball Bearing 120x215x40mm
Equivalent to: 6224ZZEC3 62242ZC3 6224.2ZC3 6224KDDC3 6224DDC3 62242ZRC3 6224FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 215mm
- Width:
- 40mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 120mm |
|---|---|
| Outside Diameter D | 215mm |
| Width B | 40mm |
| Min radius r | 2.1mm |
| Dynamic load | 145000 kN |
| Static load | 118000 kN |
| Max speed | 2900 rpm |
| da min | 132mm |
| Da max | 203mm |
| ra max | 2mm |
| Weight | 5.15 kg |
