SKU: 62304-2RS1-SKF

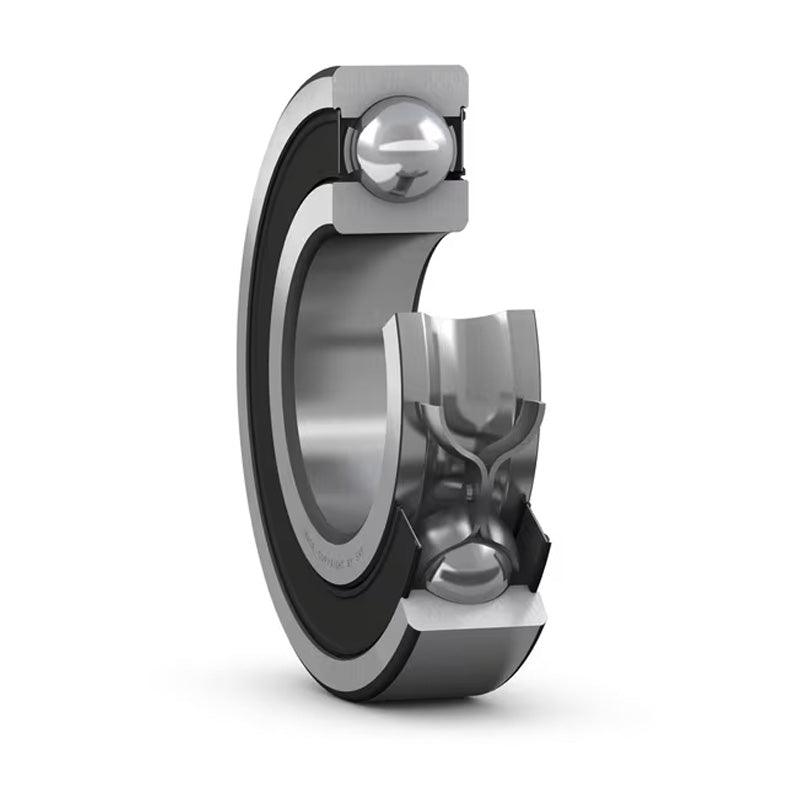

SKF 623042RS1 Rubber Sealed Deep Groove Ball Bearing 20x52x21mm
SKF 623042RS1 Rubber Sealed Deep Groove Ball Bearing 20x52x21mm
Regular price
$30.25
ex VAT
Regular price
Sale price
$30.25
ex VAT
Equivalent to: 62304NSE 62304DU 62304RS 62304RSH 62304P 62304RSR 62304LU 623042NSE 62304DDU 623042RS 623042RSH 62304PP 623042RSR 62304LLU
In stock
Price Break
4+
$20.27
10+
$19.13
20+
$18.90
30+
$18.67
50+
$18.44
75+
$18.22
100+
$17.08
200+
$16.85
250+
$16.62
500+
$16.39
1000+
$15.94
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 21mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 21mm |
| Dynamic load C | 15.9 kN |
| Static load Co | 7.8 kN |
| Fatigue load limit Pu | 0.335 kN |
| Reference speed | 30000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.2 kg |
| d1 | 30.4mm |
| D2 | 44.8mm |
| r1r2 min | 1.1mm |
| da min | 27mm |
| Da max | 45mm |
| ra max | 1mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 12 |
