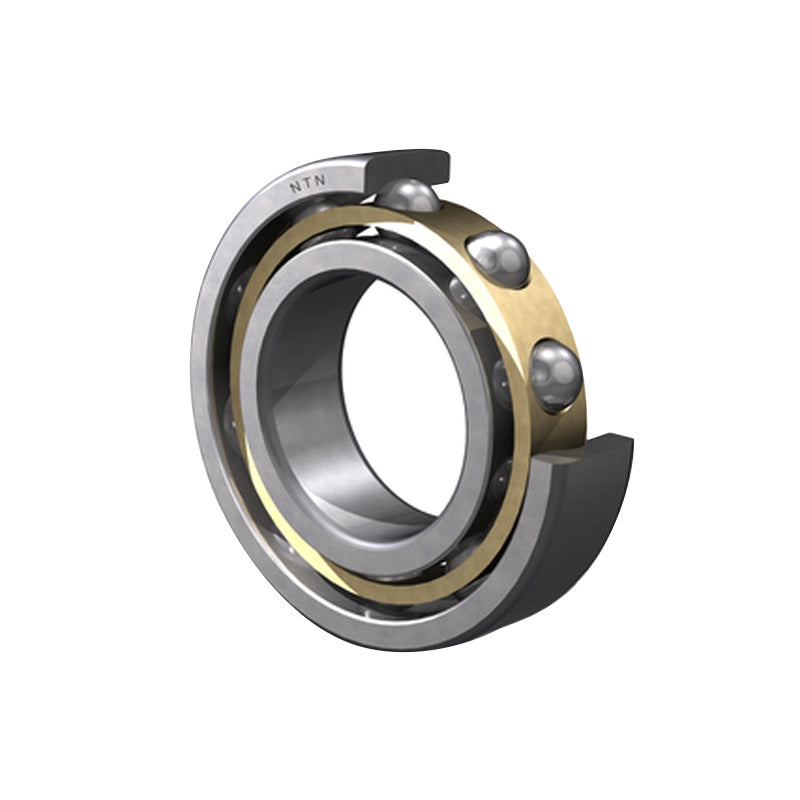

• NTN 6230L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 150x270x45mm
1 1

SKU: 6230L1C3-NTN

NTN 6230L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 150x270x45mm

NTN 6230L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 150x270x45mm
$662.81 ex VAT
$662.81 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
150mm
Outside Diameter:
270mm
Width:
45mm
Seals / Shields:
None
Clearance:
C3
Technical
--- Bearing dimensions
d 150mm
D 270mm
B 45mm
r<sub>s</sub> min 3mm
--- Loads angles and speeds
C<sub>r</sub> 195 Kn
C<sub>or</sub> 168 kN
C<sub>u</sub> 9.05 kN
f<sub>0</sub> 15.1 kN
Grease 2300 rpm
Oil 2700 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 163mm
D<sub>a</sub> Max. 257mm
r<sub>as</sub> Max. 2.5mm
Weight 9.41 kg
