SKU: 62310-2RS1-SKF

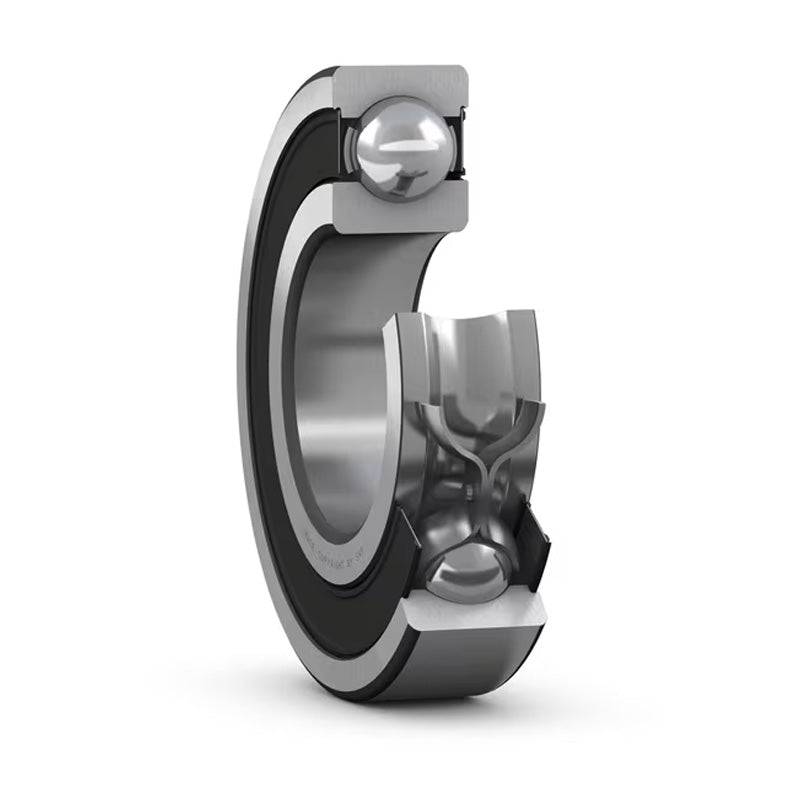

SKF 623102RS1 Rubber Sealed Deep Groove Ball Bearing 50x110x40mm
SKF 623102RS1 Rubber Sealed Deep Groove Ball Bearing 50x110x40mm
Regular price
$146.90
ex VAT
Regular price
Sale price
$146.90
ex VAT
Equivalent to: 62310NSE 62310DU 62310RS 62310RSH 62310P 62310RSR 62310LU 623102NSE 62310DDU 623102RS 623102RSH 62310PP 623102RSR 62310LLU
In stock
Price Break
4+
$98.39
10+
$92.87
20+
$91.76
30+
$90.66
50+
$89.55
75+
$88.44
100+
$82.92
200+
$81.81
250+
$80.71
500+
$79.60
1000+
$77.39
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 40mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 40mm |
| Dynamic load C | 61.8 kN |
| Static load Co | 38 kN |
| Fatigue load limit Pu | 1.6 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 4300 rpm |
| Weight | 1.55 kg |
| d1 | 68.8mm |
| D2 | 95.2mm |
| r1r2 min | 2mm |
| da min | 61mm |
| Da max | 99mm |
| ra max | 2mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 13 |
