SKU: 62311-2RS1-SKF

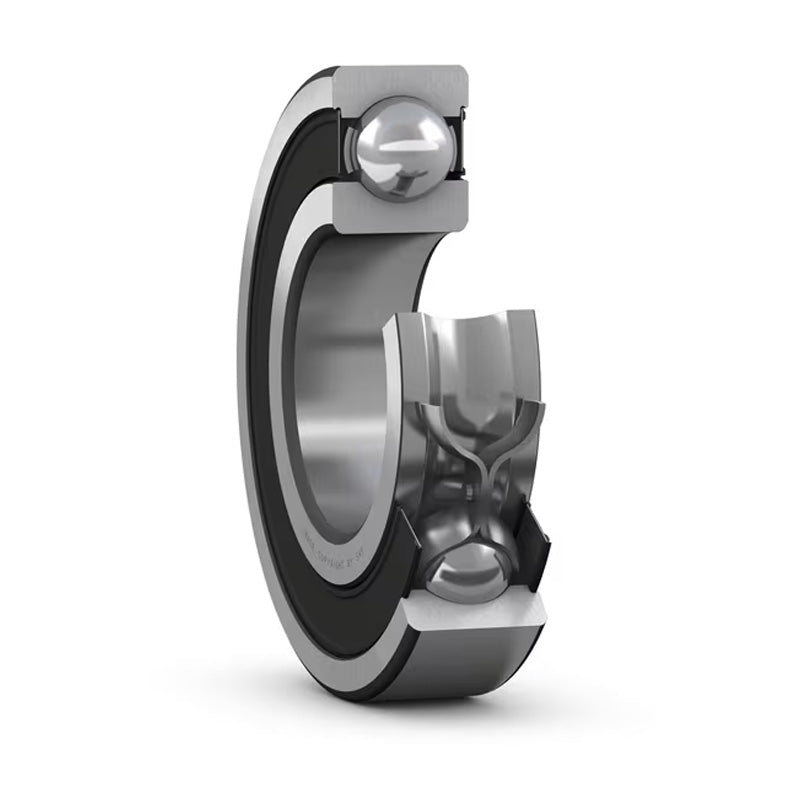

SKF 623112RS1 Rubber Sealed Deep Groove Ball Bearing 55x120x43mm
SKF 623112RS1 Rubber Sealed Deep Groove Ball Bearing 55x120x43mm
Regular price
$342.42
ex VAT
Regular price
Sale price
$342.42
ex VAT
Equivalent to: 62311NSE 62311DU 62311RS 62311RSH 62311P 62311RSR 62311LU 623112NSE 62311DDU 623112RS 623112RSH 62311PP 623112RSR 62311LLU
In stock
Price Break
4+
$229.36
10+
$216.47
20+
$213.90
30+
$211.32
50+
$208.74
75+
$206.17
100+
$193.28
200+
$190.70
250+
$188.13
500+
$185.55
1000+
$180.40
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 120mm
- Width:
- 43mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 120mm |
| B | 43mm |
| Dynamic load C | 71.5 kN |
| Static load Co | 45 kN |
| Fatigue load limit Pu | 1.9 kN |
| Reference speed | 12000 rpm |
| Limiting speed | 3800 rpm |
| Weight | 1.95 kg |
| d1 | 75.3mm |
| D2 | 104mm |
| r1r2 min | 2mm |
| da min | 66mm |
| Da max | 109mm |
| ra max | 2mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 13 |
