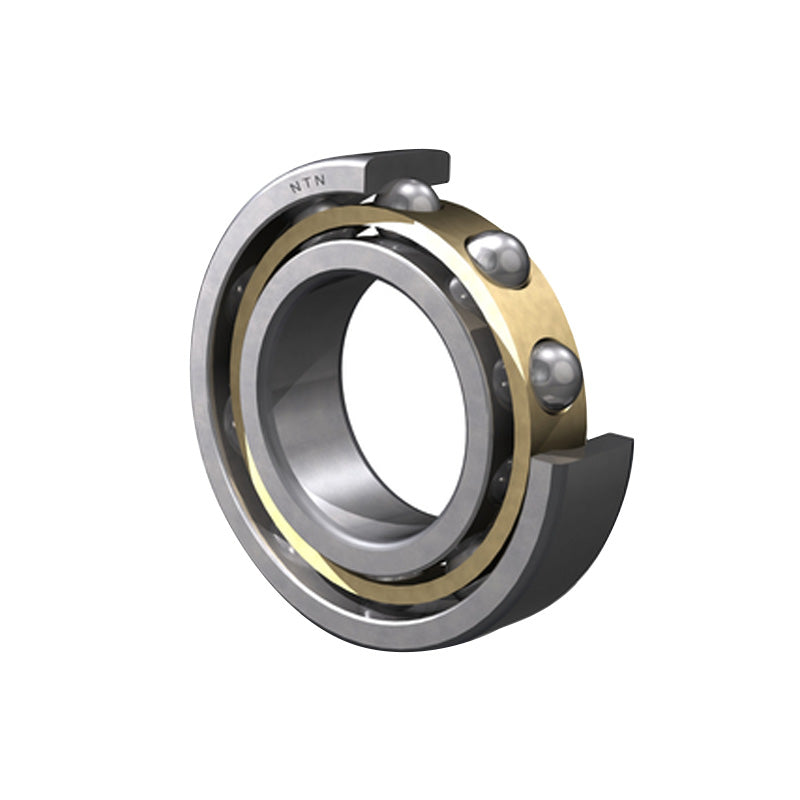

• NTN 6232L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 160x290x48mm
1 1

SKU: 6232L1C3-NTN

NTN 6232L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 160x290x48mm

NTN 6232L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 160x290x48mm
$732.56 ex VAT
$732.56 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
160mm
Outside Diameter:
290mm
Width:
48mm
Seals / Shields:
None
Clearance:
C3
Technical
--- Bearing dimensions
d 160mm
D 290mm
B 48mm
r<sub>s</sub> min 3mm
--- Loads angles and speeds
C<sub>r</sub> 205 Kn
C<sub>or</sub> 186 kN
C<sub>u</sub> 9.45 kN
f<sub>0</sub> 15.4 kN
Grease 2100 rpm
Oil 2500 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 173mm
D<sub>a</sub> Max. 277mm
r<sub>as</sub> Max. 2.5mm
Weight 11.7 kg
