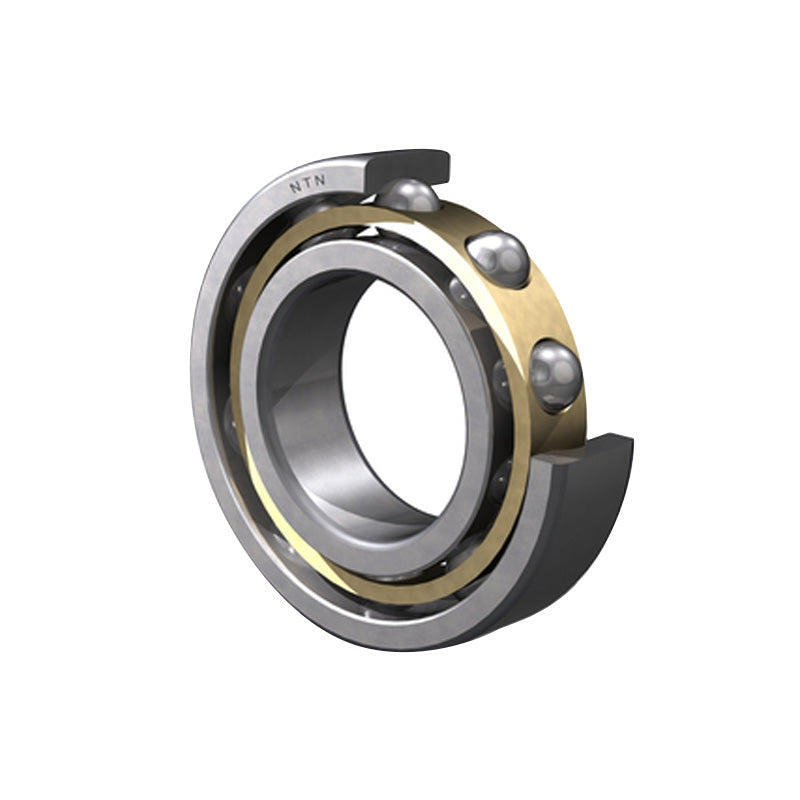

• NTN 6236L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 180x320x52mm
1 1

SKU: 6236L1C3-NTN

NTN 6236L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 180x320x52mm

NTN 6236L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 180x320x52mm
$1,032.16 ex VAT
$1,032.16 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
180mm
Outside Diameter:
320mm
Width:
52mm
Seals / Shields:
None
Clearance:
C3
Technical
--- Bearing dimensions
d 180mm
D 320mm
B 52mm
r<sub>s</sub> min 4mm
--- Loads angles and speeds
C<sub>r</sub> 252 Kn
C<sub>or</sub> 241 kN
C<sub>u</sub> 11.9 kN
f<sub>0</sub> 15.1 kN
Grease 1900 rpm
Oil 2200 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 196mm
D<sub>a</sub> Max. 304mm
r<sub>as</sub> Max. 3mm
Weight 15.1 kg
