SKU: 625-ZZ-CDX

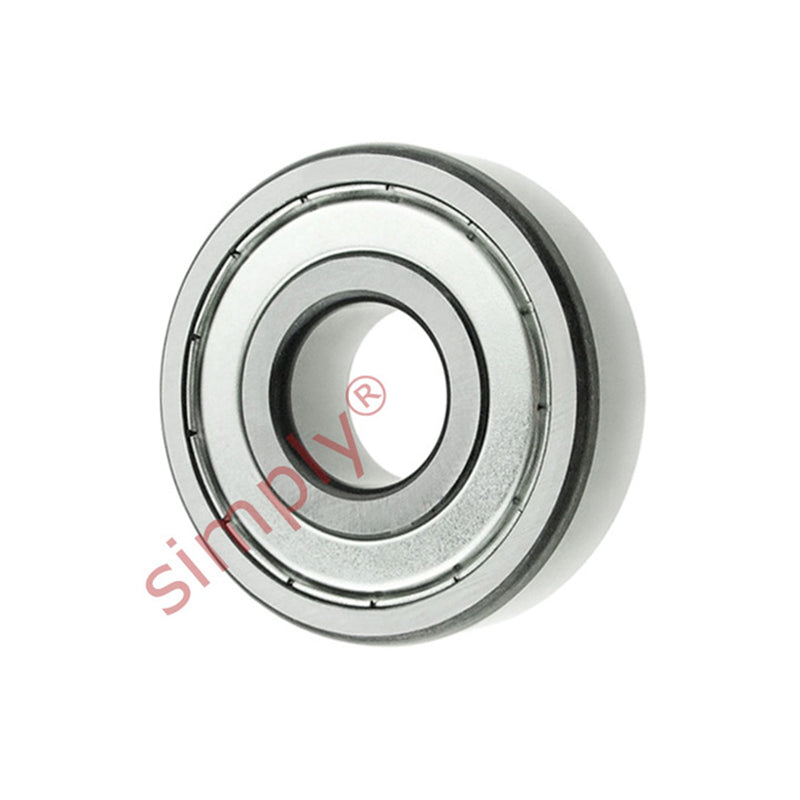

Codex 625ZZ Metal Shielded Deep Groove Ball Bearing 5x16x5mm
Equivalent to: 625ZZ 6252Z 6252ZR 625ZZE 625FF 625DD 625DDC 625KDDC EL5ZZ EL52Z
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 16mm
- Width:
- 5mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 5mm |
|---|---|
| D | 16mm |
| B | 5mm |
| Dynamic load C | 1.14 kN |
| Static load Co | 0.38 kN |
| Fatigue load limit Pu | 0.016 |
| Reference speed | 95000 rpm |
| Limiting speed | 48000 rpm |
| Weight | 0.005 kg |
| d1 | 8.4mm |
| D2 | 13.3mm |
| r1r2 min | 0.3mm |
| da min | 7.4mm |
| Da max | 13.6mm |
| ra max | 0.3 |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 8.4 |
