SKU: 628/9-2Z-C3-FAG

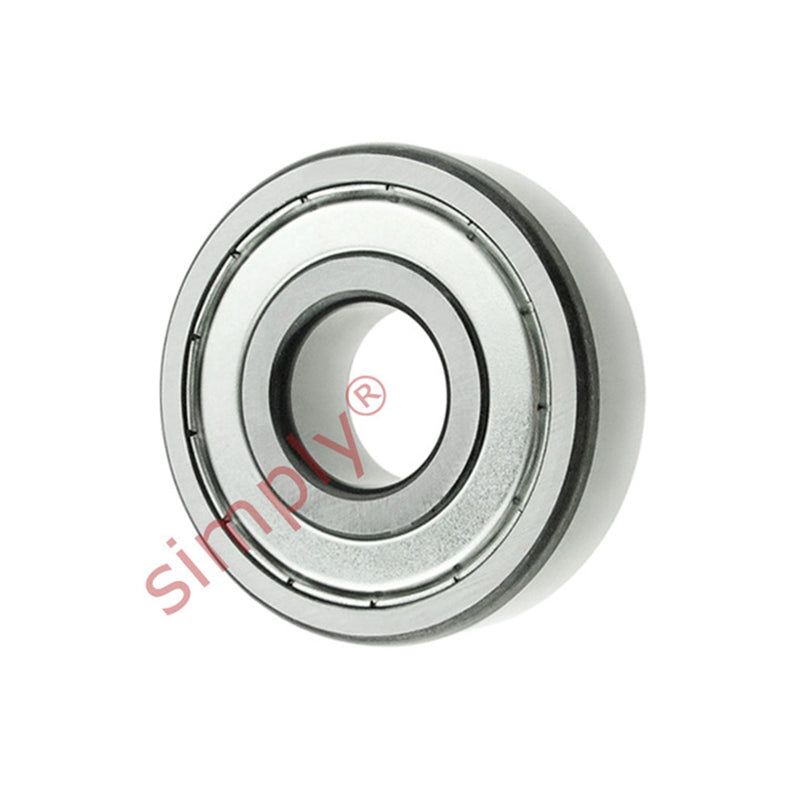

FAG 628/92ZC3 Metal Shielded Deep Groove Ball Bearing 9x17x5mm
FAG 628/92ZC3 Metal Shielded Deep Groove Ball Bearing 9x17x5mm
Equivalent to: 628/9ZZC3 628/92ZRC3
Out of stock
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 9mm
- Outside Diameter:
- 17mm
- Width:
- 5mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 9mm |
|---|---|
| D | 17mm |
| B | 5mm |
| Dynamic load C | 1.43 kN |
| Static load Co | 0.64 kN |
| Fatigue load limit Pu | 0.027 kN |
| Reference speed | 85000 rpm |
| Limiting speed | 43000 rpm |
| Mass | 0.0043 kg |
| d1 | 11.1mm |
| D2 | 15.5mm |
| r1r2 min | 0.2mm |
| da min | 10.4 |
