SKU: 628-MB

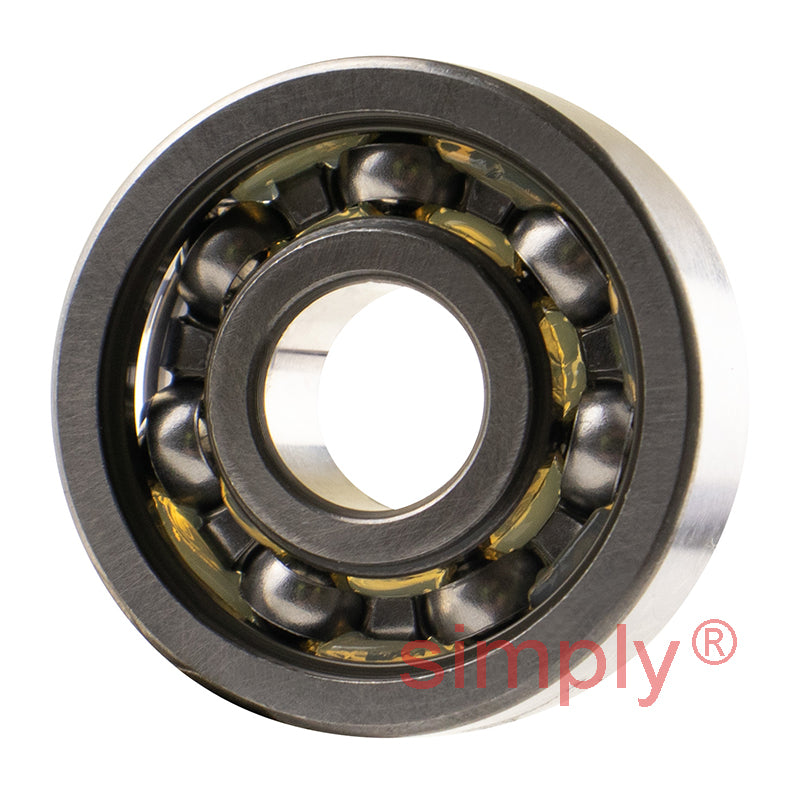

Major Branded 628 Open Deep Groove Ball Bearing 8x24x8mm
Major Branded 628 Open Deep Groove Ball Bearing 8x24x8mm
Regular price
$5.38
ex VAT
Regular price
Sale price
$5.38
ex VAT
In stock
Price Break
10+
$3.61
19+
$3.41
29+
$3.36
39+
$3.32
49+
$3.28
74+
$3.24
99+
$3.04
199+
$3.00
249+
$2.96
499+
$2.92
999+
$2.84
Quantity
Couldn't load pickup availability
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 24mm
- Width:
- 8mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 8mm |
|---|---|
| D | 24mm |
| B | 8mm |
| Dynamic load C | 3.9 kN |
| Static load Co | 1.66 kN |
| Fatigue load limit Pu | 0.071 kN |
| Reference speed | 63000 rpm |
| Limiting speed | 40000 rpm |
| Mass | 0.017 kg |
| d1 | 14.5mm |
| D1 | 19.8mm |
| D2 | 20.6mm |
| r1r2 min | 0.3mm |
| da min | 10.4mm |
| Da max | 21.6mm |
| ra max | 0.3mm |
| Calc factor Kr | 0.025 |
| Calc factor | 13 |
