• NTN 63/22 Open Type Deep Groove Ball Bearing 22x56x16mm
  • NTN 63/22 Open Type Deep Groove Ball Bearing 22x56x16mm
  • NTN 63/22 Open Type Deep Groove Ball Bearing 22x56x16mm
  • NTN
1 4

SKU: 63/22-NTN

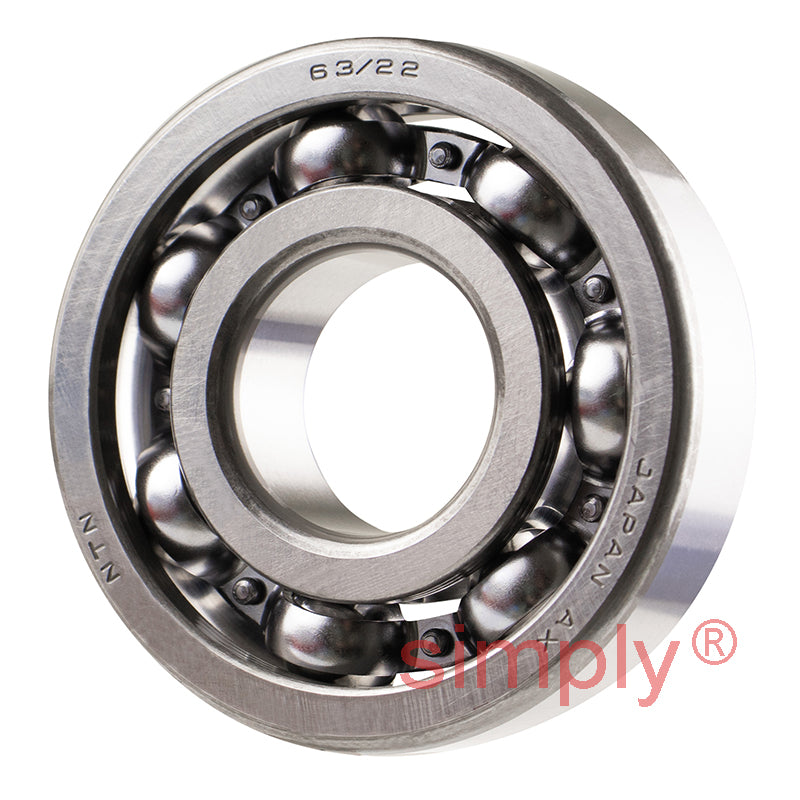

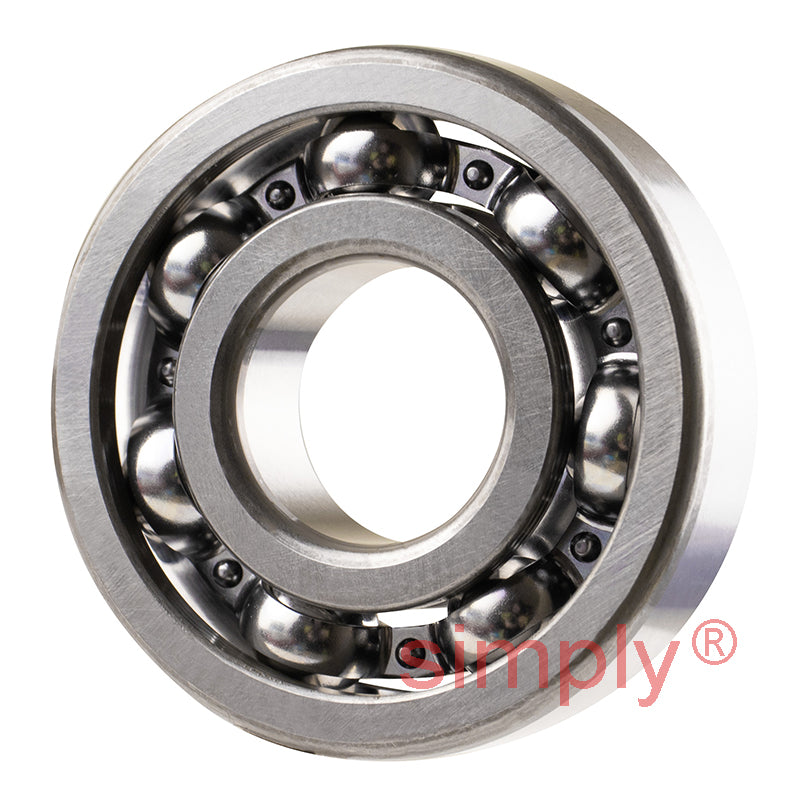

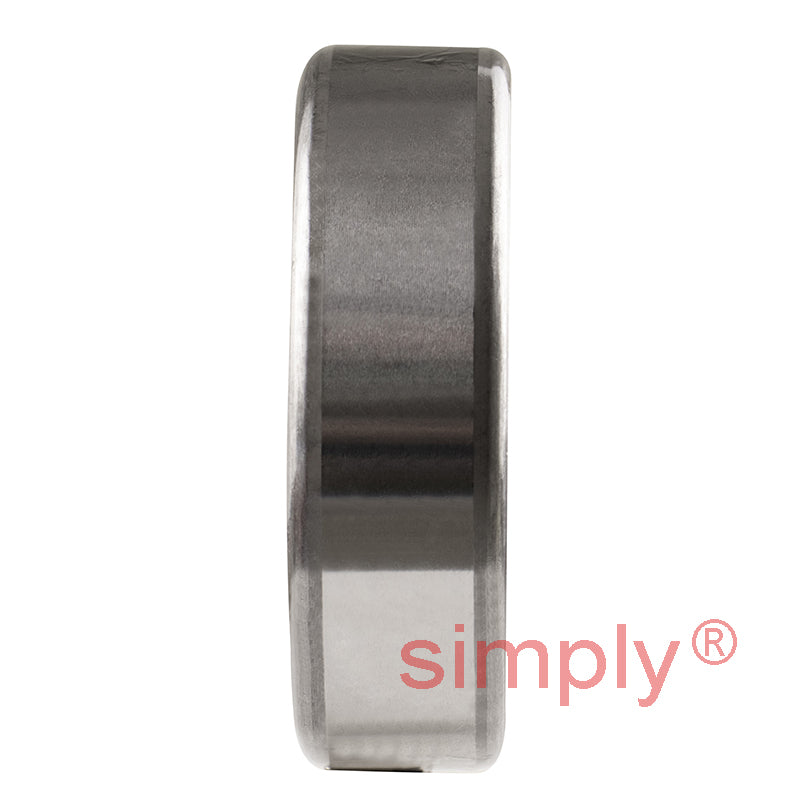

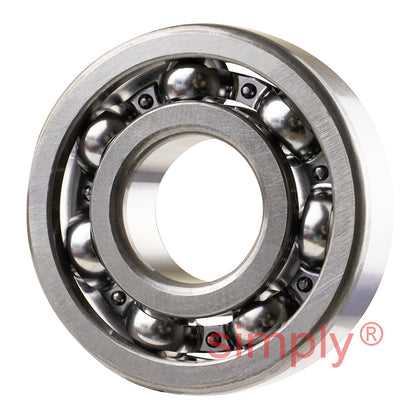

NTN 63/22 Open Type Deep Groove Ball Bearing 22x56x16mm

NTN 63/22 Open Type Deep Groove Ball Bearing 22x56x16mm
$57.56 ex VAT
$57.56 ex VAT
Sale Sold out

Equivalent to: 63/22CM 5B22

In stock

Price Break
3+ $38.55
5+ $36.39
10+ $35.96
25+ $35.52
49+ $35.09
74+ $34.66
99+ $32.49
199+ $32.06
249+ $31.62
499+ $31.19
999+ $30.32

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
22mm
Outside Diameter:
56mm
Width:
16mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 22mm
D 56mm
B 16mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
C<sub>r</sub> 20.4 kN
C<sub>or</sub> 9.25 kN
C<sub>u</sub> 0.725 kN
f<sub>0</sub> 12.4 kN
Grease 13000 rpm
Oil 15000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 28.5mm
D<sub>a</sub> Max. 49.5mm
r<sub>as</sub> Max. 1mm
Weight 0.176 kg
