SKU: 63/22NRC3-NTN

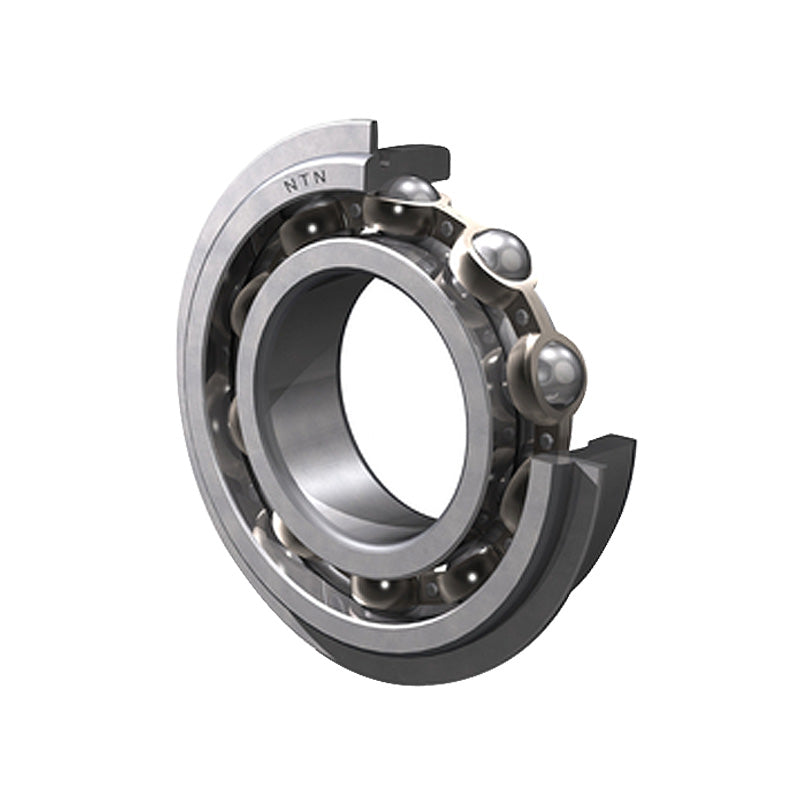

NTN 63/22NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 22x56x16mm - Allow 2-3 Days
NTN 63/22NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 22x56x16mm - Allow 2-3 Days
Regular price
$29.44
ex VAT
Regular price
Sale price
$29.44
ex VAT
Equivalent to: 5B22NRC3
In stock
Price Break
3+
$21.93
5+
$21.04
10+
$20.60
25+
$19.94
49+
$19.49
74+
$18.38
99+
$15.51
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 56mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 22mm |
| D | 56mm |
| B | 16mm |
| r<sub>s</sub> min | 1.1mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 20.4 kN |
| C<sub>or</sub> | 9.25 kN |
| C<sub>u</sub> | 0.725 kN |
| f<sub>0</sub> | 12.4 kN |
| Grease | 13000 rpm |
| Oil | 15000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 53.6mm |
| a Max. | 2.46mm |
| b Min. | 1.35mm |
| r<sub>o</sub> Max. | 0.4mm |
| D<sub>2</sub> Max. | 61.7mm |
| f Max. | 1.12mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 28.5mm |
| d<sub>a</sub> Max. | 31mm |
| D<sub>a</sub> Max. | 49.5mm |
| D<sub>X</sub> (approx) | 62.5mm |
| C<sub>Y</sub> Max. | 3.3mm |
| C<sub>Z</sub> Min. | 1.2mm |
| r<sub>as</sub> Max. | 1mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.176 kg |
