SKU: 63/28-NTN

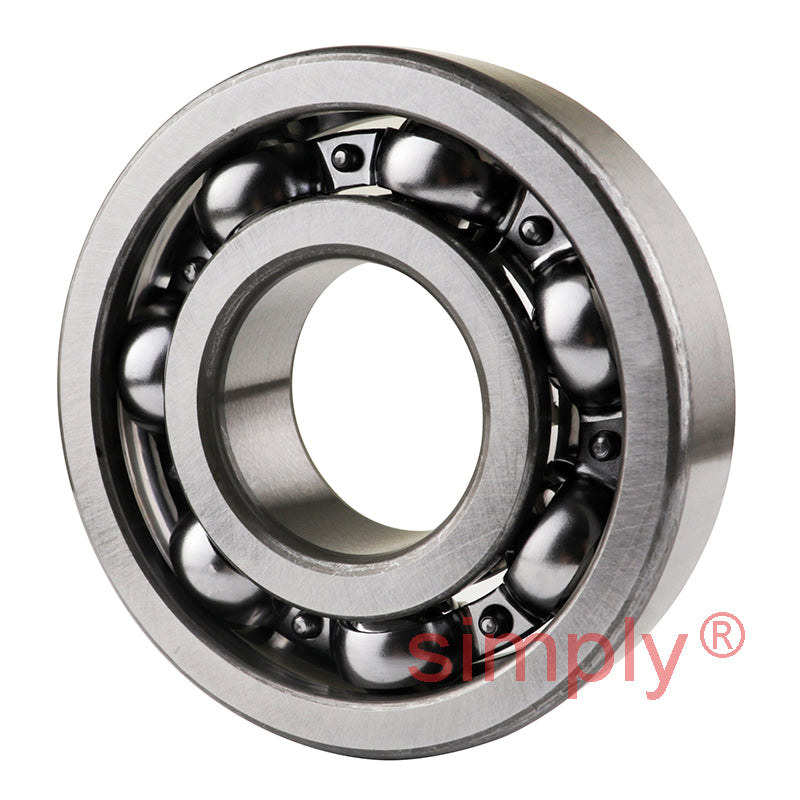

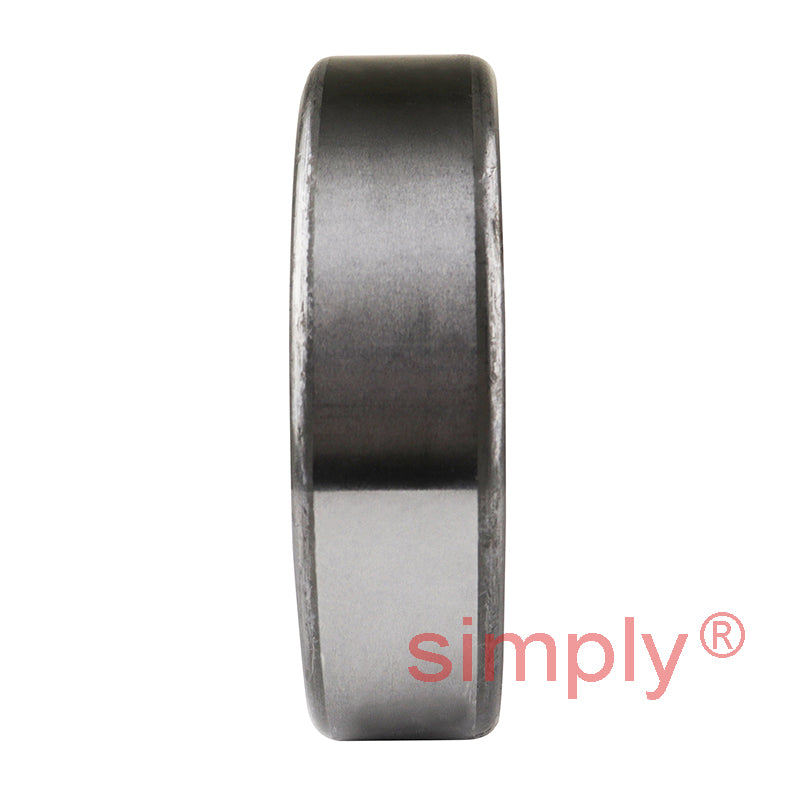

NTN 63/28 Open Type Deep Groove Ball Bearing 28x68x18mm

NTN 63/28 Open Type Deep Groove Ball Bearing 28x68x18mm
$45.00 ex VAT
$45.00 ex VAT
Sale Sold out

Equivalent to: 63/28CM 6B28

In stock

Price Break
3+ $30.14
5+ $28.45
10+ $28.11
25+ $27.77
49+ $27.43
74+ $27.10
99+ $25.40
199+ $25.06
249+ $24.73
499+ $24.39
999+ $23.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
28mm
Outside Diameter:
68mm
Width:
18mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 28mm
D 68mm
B 18mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
C<sub>r</sub> 29.6 kN
C<sub>or</sub> 14 kN
C<sub>u</sub> 1.1 kN
f<sub>0</sub> 12.4 kN
Grease 11000 rpm
Oil 13000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 34.5mm
D<sub>a</sub> Max. 61.5mm
r<sub>as</sub> Max. 1mm
Weight 0.284 kg
