• NTN 63/28LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 28x68x18mm
1 1

SKU: 63/28LLUNR/2AS-NTN

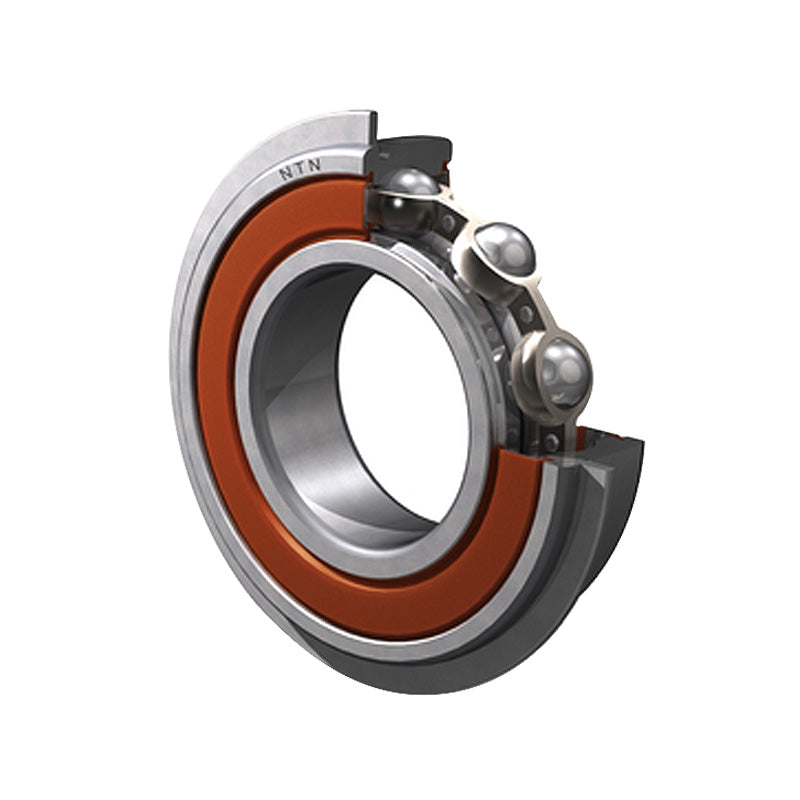

NTN 63/28LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 28x68x18mm

NTN 63/28LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 28x68x18mm
$41.77 ex VAT
$41.77 ex VAT
Sale Sold out

Equivalent to: 63/28LLUNRCM 63/28LLUNR 63/28NSENR 63/28DUNR 63/28RSNR 63/28RSHNR 63/28PNR 63/28RSRNR 63/28LUNR 63/282NSENR 63/28DDUNR 63/282RSNR 63/28-2RSNR 63/282RS1NR 63/282RSHNR 63/28PPNR 63/282RSRNR 63/28LLUNR 63/28RS2NR 63/282RS2NR 63/282RSLNR 63/28LFSNR 63/28EENR

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
MHVCVY8FIO
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
28mm
Outside Diameter:
68mm
Width:
18mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 28mm
D 68mm
B 18mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 29.6 kN
C<sub>or</sub> 14 kN
C<sub>u</sub> 1.1 kN
f<sub>0</sub> 12.4
--- Fitting Dimensions
Speed 7400rpm
D<sub>1</sub> Max. 64.82mm
a Max. 3.28mm
b Min. 1.9mm
r<sub>o</sub> Max. 0.6mm
