SKU: 6300-2Z-EU

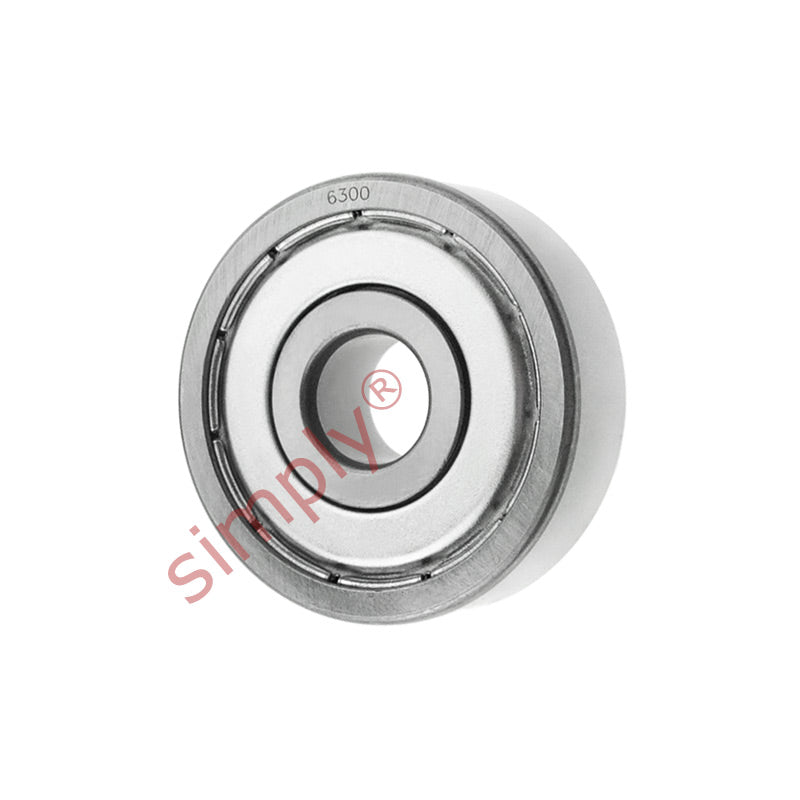

6300ZZ Budget Metal Shielded Deep Groove Ball Bearing 10x35x11mm
Equivalent to: 63002KD 63002D 63002F 63002ZE 63002ZR 6300ZZE 6300ZZ 63002ZR 63002RS2
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 10mm |
|---|---|
| D | 35mm |
| B | 11mm |
| r min | 0.6mm |
| Dynamic load Cr | 8.1 kN |
| Static load Cor | 3.45 kN |
| Speed in grease | 22000 rpm |
| Speed in oil | 27000 rpm |
