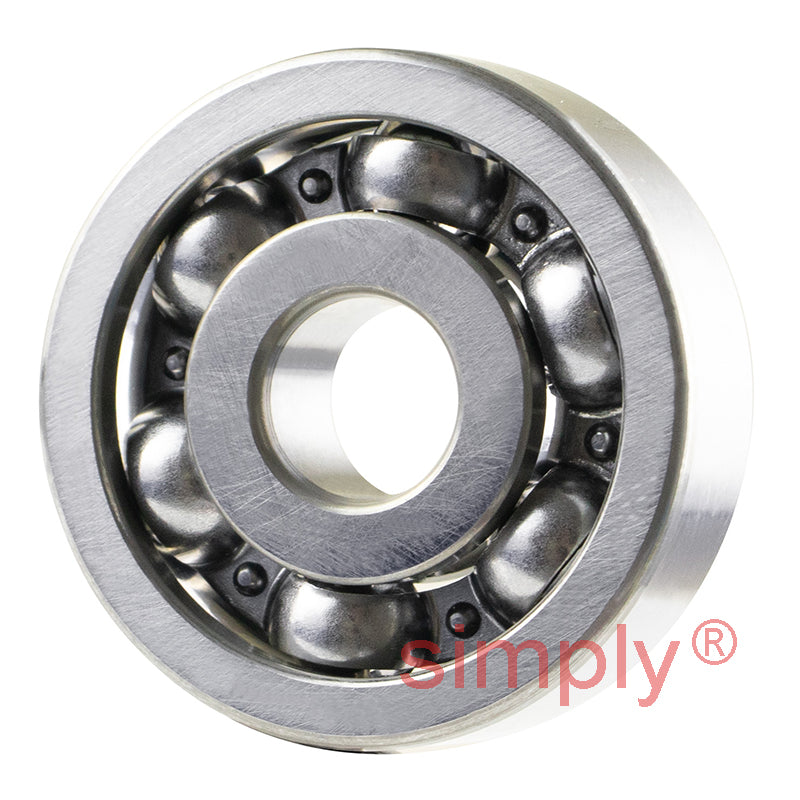

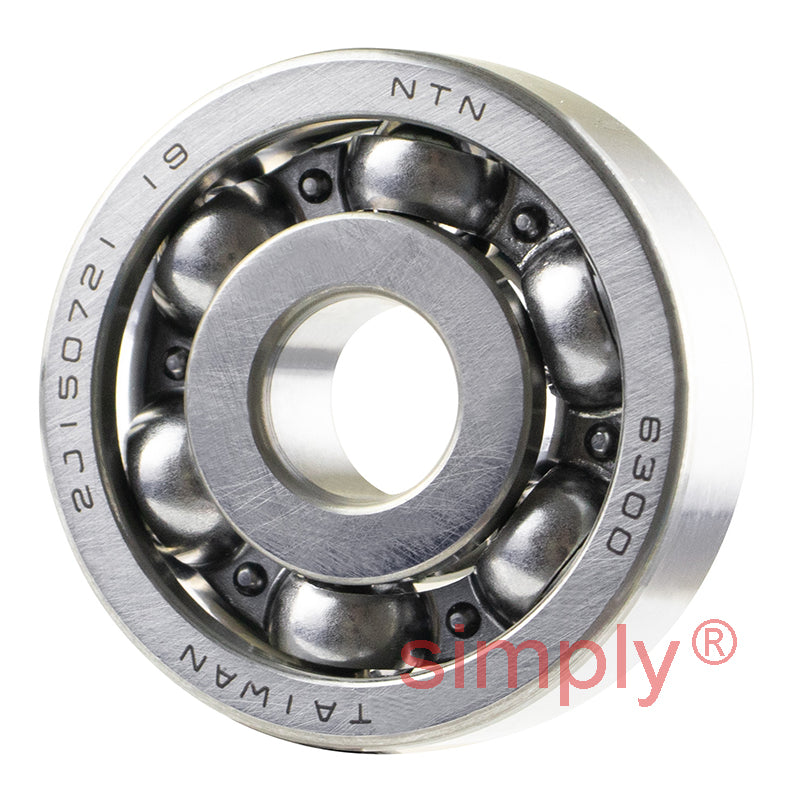

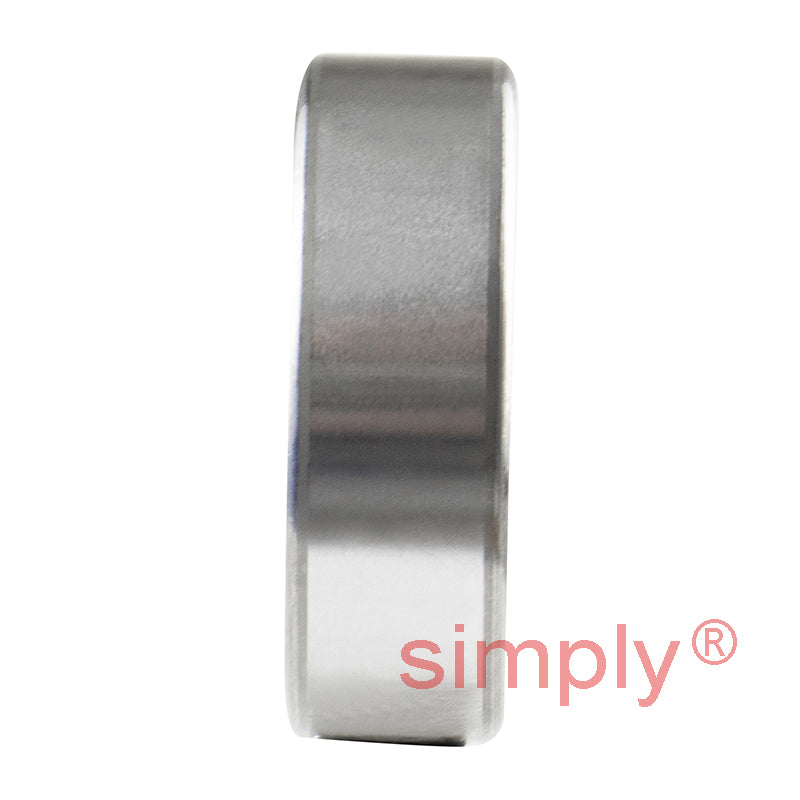

• NTN 6300 Open Type Deep Groove Ball Bearing 10x35x11mm
  • NTN 6300 Open Type Deep Groove Ball Bearing 10x35x11mm
  • NTN 6300 Open Type Deep Groove Ball Bearing 10x35x11mm
  • NTN
1 4

SKU: 6300-NTN

NTN 6300 Open Type Deep Groove Ball Bearing 10x35x11mm

NTN 6300 Open Type Deep Groove Ball Bearing 10x35x11mm
$7.88 ex VAT
$7.88 ex VAT
Sale Sold out

Equivalent to: 6300CM 300K 1300 300KS 6300 3300 1B

In stock

Price Break
3+ $5.28
5+ $4.98
10+ $4.92
25+ $4.86
49+ $4.80
74+ $4.74
99+ $4.45
199+ $4.39
249+ $4.33
499+ $4.27
999+ $4.15

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
10mm
Outside Diameter:
35mm
Width:
11mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 10mm
D 35mm
B 11mm
r<sub>s</sub> min 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 9.1 kN
C<sub>or</sub> 3.5 kN
C<sub>u</sub> 0.273 kN
f<sub>0</sub> 11.4 kN
Grease 23000 rpm
Oil 27000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 14mm
D<sub>a</sub> Max. 31mm
r<sub>as</sub> Max. 0.6mm
Weight 0.053 kg
