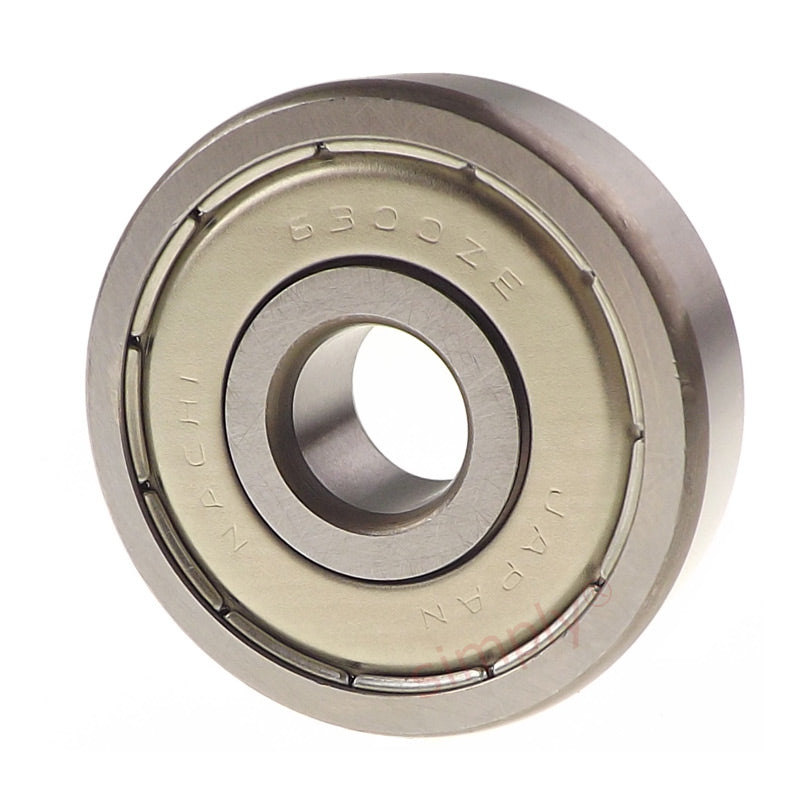

• NACHI 6300ZZE Metal Shielded Deep Groove Ball Bearing 10x35x11mm
  • Nachi
1 2

SKU: 6300-ZZE-NACHI

NACHI 6300ZZE Metal Shielded Deep Groove Ball Bearing 10x35x11mm

NACHI 6300ZZE Metal Shielded Deep Groove Ball Bearing 10x35x11mm
$7.31 ex VAT
$7.31 ex VAT
Sale Sold out

Equivalent to: 6300ZZ 63002Z 6300.2Z 6300KDD 6300DD 63002ZR 6300FF

In stock

Price Break
5+ $4.89
9+ $4.62
19+ $4.56
29+ $4.51
49+ $4.45
74+ $4.40
99+ $4.12
199+ $4.07
249+ $4.01
499+ $3.96
999+ $3.85

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance.
Benefits: High-running accuracy and high-speed operation.
Brand / Quality:
Nachi - High Quality
Inside Diameter:
10mm
Outside Diameter:
35mm
Width:
11mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Technical
Inside Diameter d 10mm
Outside Diameter D 35mm
Width B 11mm
Min radius r 0.6mm
Dynamic load 8100 kN
Static load 3450 kN
Max speed 23000 rpm
da min 15mm
Da max 30mm
ra max 0.6mm
Weight 0.053 kg
