SKU: 63002-2RSR-FAG

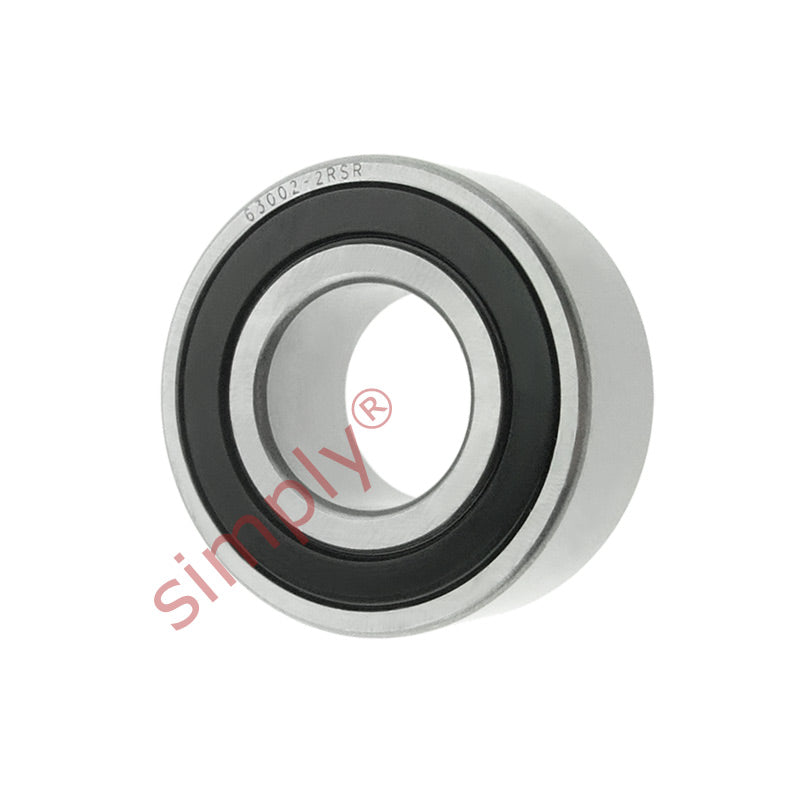

FAG 630022RSR Rubber Sealed Deep Groove Ball Bearing 15x32x13mm
FAG 630022RSR Rubber Sealed Deep Groove Ball Bearing 15x32x13mm
Regular price
$19.51
ex VAT
Regular price
Sale price
$19.51
ex VAT
Equivalent to: 63002NSE 63002DU 63002RS 63002RSH 63002P 63002RSR 63002LU 630022NSE 63002DDU 630022RS 630022RS1 630022RSH 63002PP 63002LLU
In stock
Price Break
10+
$13.07
19+
$12.33
29+
$12.18
39+
$12.04
49+
$11.89
74+
$11.74
99+
$11.01
199+
$10.86
249+
$10.72
499+
$10.57
999+
$10.28
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 15mm |
|---|---|
| D | 32mm |
| B | 13mm |
| Dynamic load C | 5.59 kN |
| Static load Co | 2.85 kN |
| Fatigue load limit Pu | 0.12 kN |
| Reference speed | 50000 rpm |
| Limiting speed | 14000 rpm |
| Mass | 0.039 kg |
| d1 | 20.5mm |
| D2 | 28.2mm |
| r1r2 min | 0.3mm |
| da min | 17 |
