• Major Brand 630032RS1C3 Rubber Sealed Deep Groove Ball Bearing 17x35x14mm
1 1

SKU: 63003-2RS1/C3-MB

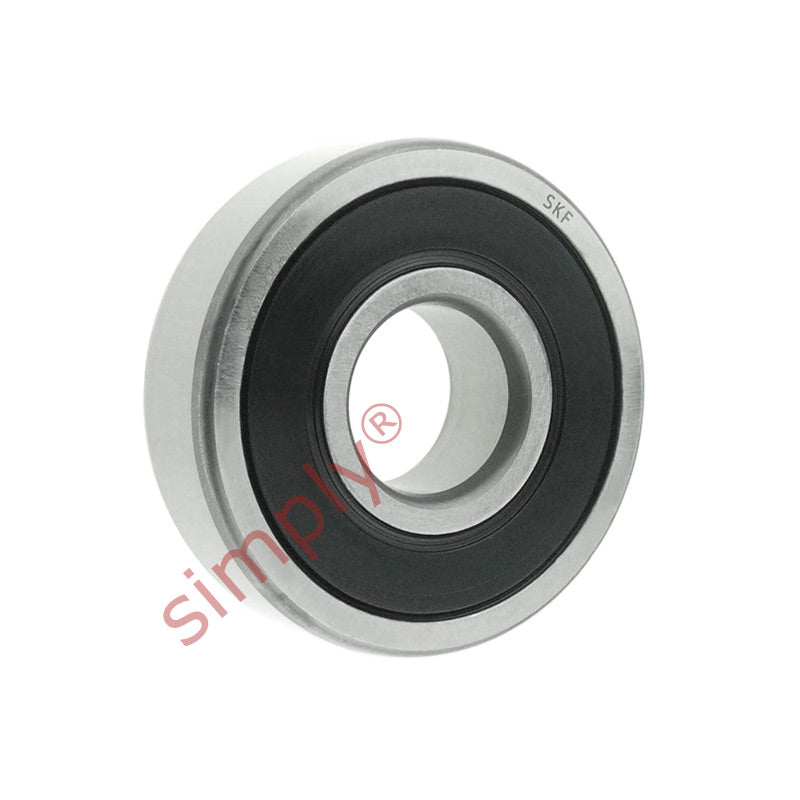

Major Brand 630032RS1C3 Rubber Sealed Deep Groove Ball Bearing 17x35x14mm

Major Brand 630032RS1C3 Rubber Sealed Deep Groove Ball Bearing 17x35x14mm
$13.66 ex VAT
$13.66 ex VAT
Sale Sold out

Equivalent to: 63003NSEC3 63003DUC3 63003RSC3 63003RSHC3 63003PC3 63003RSRC3 63003LUC3 630032NSEC3 63003DDUC3 630032RSC3 630032RSHC3 63003PPC3 630032RSRC3 63003LLU

In stock

Price Break
4+ $9.15
10+ $8.63
20+ $8.53
30+ $8.43
50+ $8.33
75+ $8.22
100+ $7.71
200+ $7.61
250+ $7.50
500+ $7.40
1000+ $7.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
17mm
Outside Diameter:
35mm
Width:
14mm
Seals / Shields:
Rubber Sealed
Clearance:
C3
Technical
d 17mm
D 35mm
B 14mm
Dynamic load C 6.05 kN
Static load Co 3.25 kN
Fatigue load limit Pu 0.137 kN
Reference speed 45000 rpm
Limiting speed 13000 rpm
Weight 0.052 kg
d1 23mm
D2 31.4mm
r1r2 min 0.3mm
da min 19mm
Da max 33mm
ra max 0.3mm
Calculation factor kr 0.025
Calculation factor f0 14
