SKU: 63003-2RSR-FAG

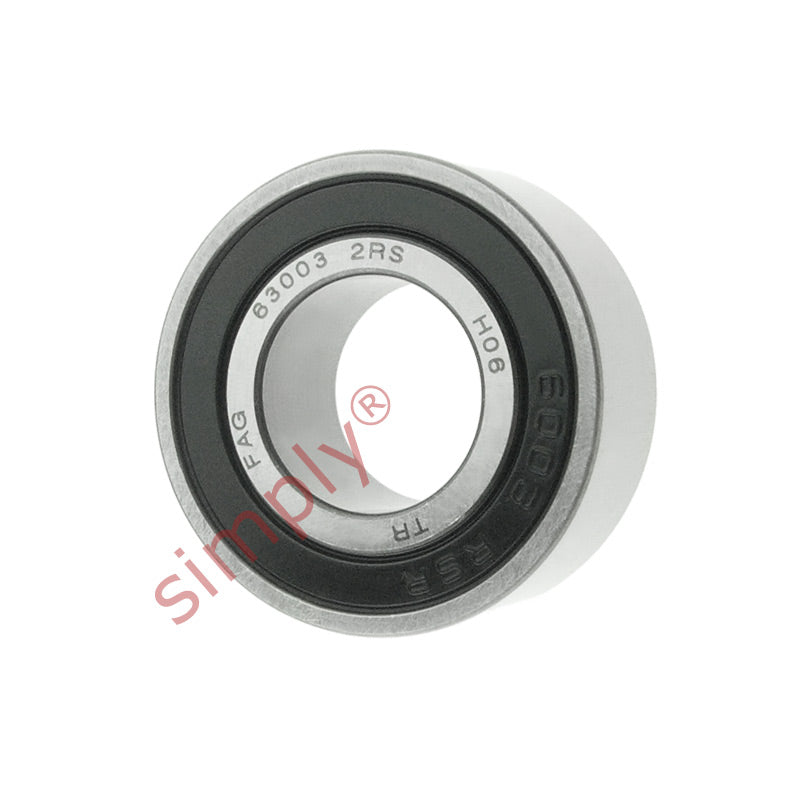

FAG 630032RSR Rubber Sealed Deep Groove Ball Bearing 17x35x14mm
FAG 630032RSR Rubber Sealed Deep Groove Ball Bearing 17x35x14mm
Regular price
$20.85
ex VAT
Regular price
Sale price
$20.85
ex VAT
Equivalent to: 63003NSE 63003DU 63003RS 63003RSH 63003P 63003RSR 63003LU 630032NSE 63003DDU 630032RS 630032RS1 630032RSH 63003PP 63003LLU
In stock
Price Break
10+
$13.96
19+
$13.18
29+
$13.02
39+
$12.87
49+
$12.71
74+
$12.55
99+
$11.77
199+
$11.61
249+
$11.45
499+
$11.30
999+
$10.98
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 14mm |
| Dynamic load C | 6.05 kN |
| Static load Co | 3.25 kN |
| Fatigue load limit Pu | 0.137 kN |
| Reference speed | 45000 rpm |
| Limiting speed | 13000 rpm |
| Mass | 0.052 kg |
| d1 | 23mm |
| D2 | 31.4mm |
| r1r2 min | 0.3mm |
| da min | 19 |
