SKU: 63005-2RS1-SKF

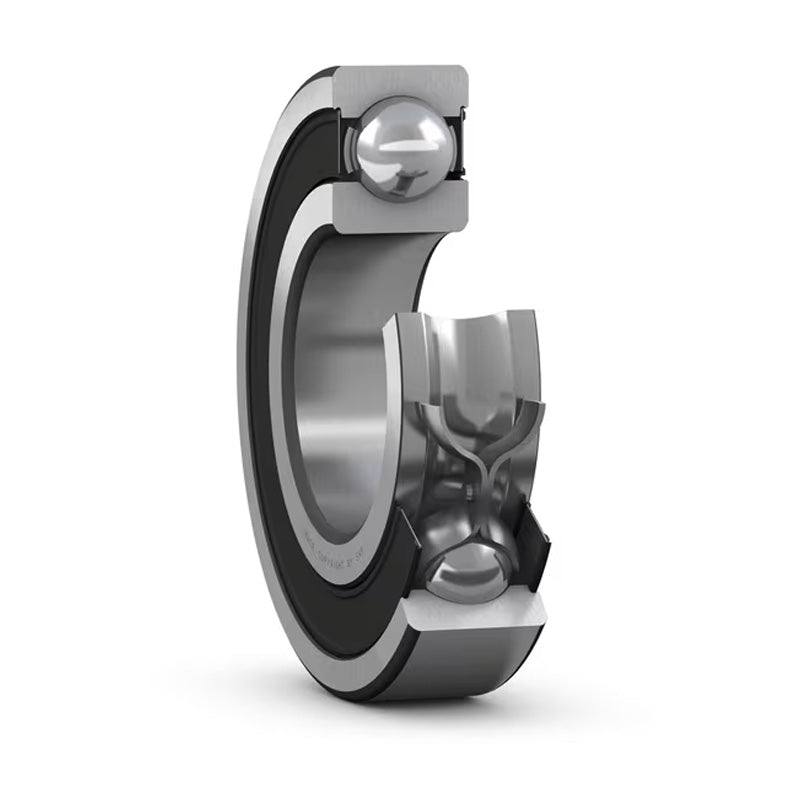

SKF 630052RS1 Rubber Sealed Deep Groove Ball Bearing 25x47x16mm
SKF 630052RS1 Rubber Sealed Deep Groove Ball Bearing 25x47x16mm
Regular price
$25.44
ex VAT
Regular price
Sale price
$25.44
ex VAT
Equivalent to: 63005NSE 63005DU 63005RS 63005RSH 63005P 63005RSR 63005LU 630052NSE 63005DDU 630052RS 630052RSH 63005PP 630052RSR 63005LLU
In stock
Price Break
4+
$17.04
10+
$16.08
20+
$15.89
30+
$15.70
50+
$15.51
75+
$15.32
100+
$14.36
200+
$14.17
250+
$13.98
500+
$13.79
1000+
$13.40
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B | 16mm |
| Dynamic load C | 11.2 kN |
| Static load Co | 6.55 kN |
| Fatigue load limit Pu | 0.275 kN |
| Reference speed | 32000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.1 kg |
| d1 | 32mm |
| D2 | 42.2mm |
| r1r2 min | 0.6mm |
| da min | 29.2mm |
| Da max | 43.8mm |
| ra max | 0.6mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
