SKU: 6301C3-NSK
NSK 6301C3 Open Type Deep Groove Ball Bearing 12x37x12mm
NSK 6301C3 Open Type Deep Groove Ball Bearing 12x37x12mm
Regular price
$6.35
ex VAT
Regular price
Sale price
$6.35
ex VAT
In stock
Price Break
4+
$4.25
10+
$4.02
20+
$3.97
30+
$3.92
50+
$3.87
75+
$3.82
100+
$3.59
200+
$3.54
250+
$3.49
500+
$3.44
1000+
$3.35
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 37mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- C3

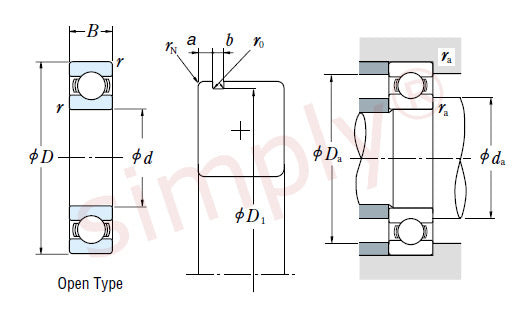

Technical
Technical
| d | 12mm |
|---|---|
| D | 37mm |
| B | 12mm |
| r min | 1mm |
| Dynamic load Cr | 9700 N (990 kgf) |
| Static load Cor | 4200 N (425 kgf) |
| Factor | 11.1 |
| Speed in grease | 20000 rpm |
| Speed in oil | 24000 rpm |
| Mass | 0.06 kg |
