• NTN 6302 Open Type Deep Groove Ball Bearing 15x42x13mm
  • NTN 6302 Open Type Deep Groove Ball Bearing 15x42x13mm
  • NTN 6302 Open Type Deep Groove Ball Bearing 15x42x13mm
  • NTN
1 4

SKU: 6302-NTN

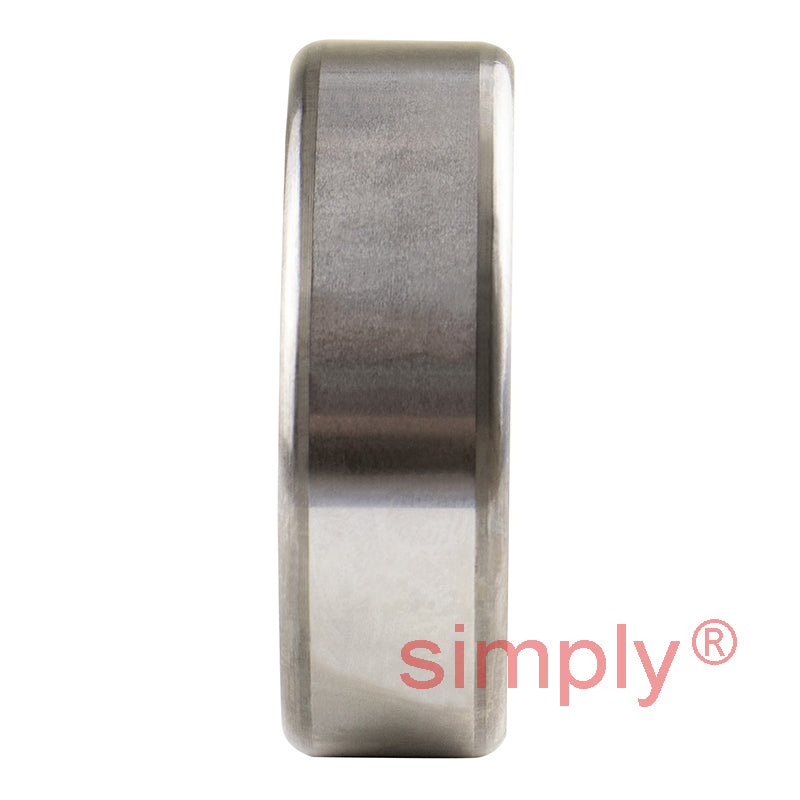

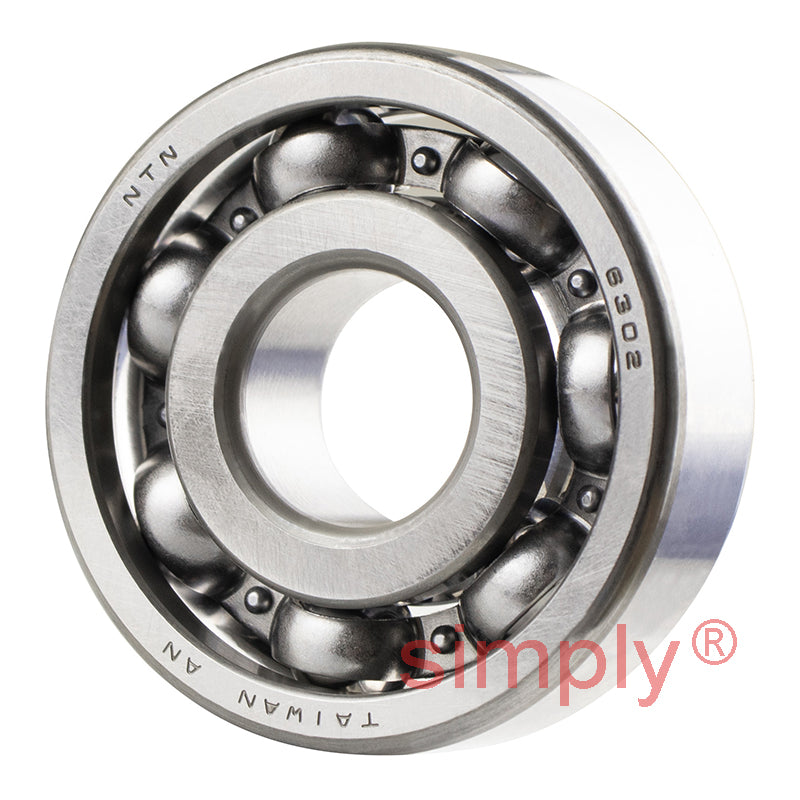

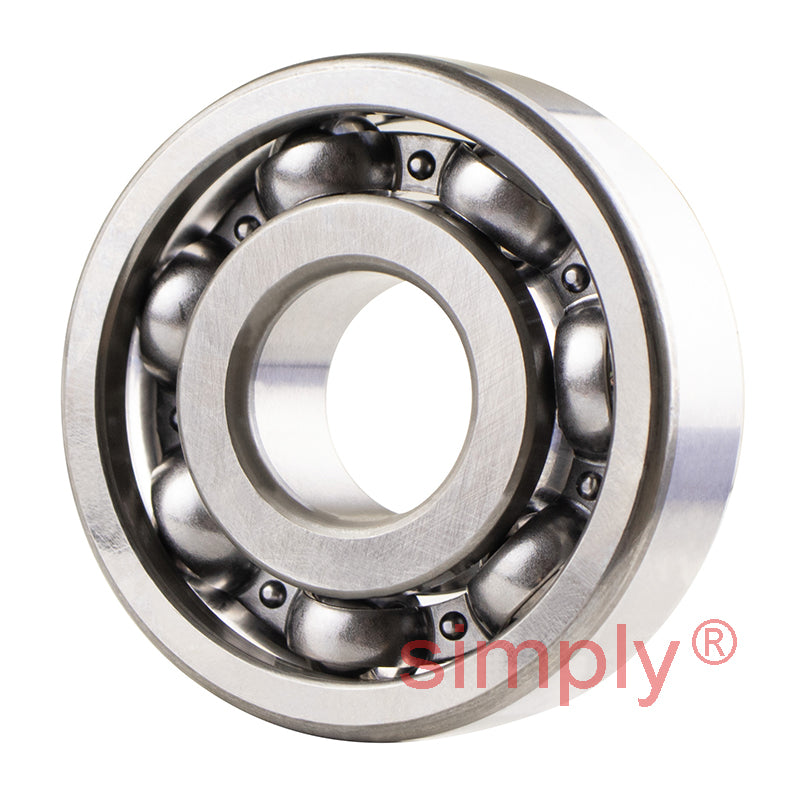

NTN 6302 Open Type Deep Groove Ball Bearing 15x42x13mm

NTN 6302 Open Type Deep Groove Ball Bearing 15x42x13mm
$8.11 ex VAT
$8.11 ex VAT
Sale Sold out

Equivalent to: 6302CM 302K 1302 302KS 6302 3302 3B

In stock

Price Break
3+ $5.43
5+ $5.12
10+ $5.06
25+ $5.00
49+ $4.94
74+ $4.88
99+ $4.58
199+ $4.51
249+ $4.45
499+ $4.39
999+ $4.27

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
15mm
Outside Diameter:
42mm
Width:
13mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 15mm
D 42mm
B 13mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
C<sub>r</sub> 12.7 kN
C<sub>or</sub> 5.45 kN
C<sub>u</sub> 0.425 kN
f<sub>0</sub> 12.3 kN
Grease 17000 rpm
Oil 21000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 20mm
D<sub>a</sub> Max. 37mm
r<sub>as</sub> Max. 1mm
Weight 0.082 kg
