SKU: 6303-2RSH/C3-EU

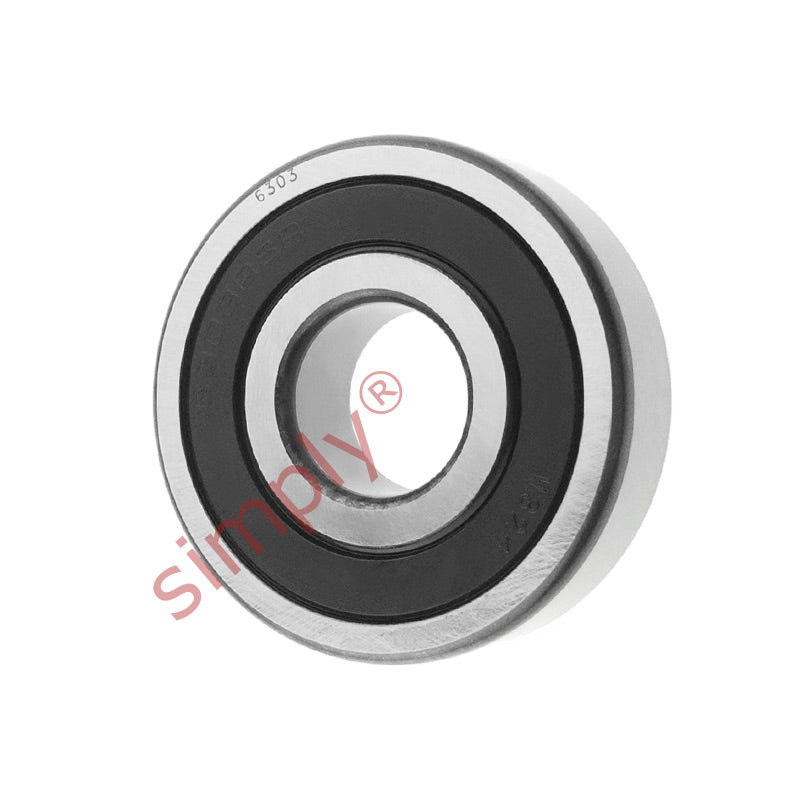

63032RSC3 Budget Rubber Sealed Deep Groove Ball Bearing 17x47x14mm
Equivalent to: 6303NSEC3 6303DUC3 6303RSC3 6303RSHC3 6303PC3 6303RSRC3 6303LUC3 63032NSEC3 6303DDUC3 63032RSC3 6303PPC3 63032RSRC3 6303LLUC3 63032RSC3 6303RS2C3 63032RS2C3 63032RS1C3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 17mm |
|---|---|
| D | 47mm |
| B | 14mm |
| r min | 1mm |
| Dynamic load Cr | 13.6 kN |
| Static load Cor | 6.65 kN |
| Speed in grease | 15000 rpm |
| Speed in oil | 18000 rpm |
