SKU: 6303-2RSH-EU

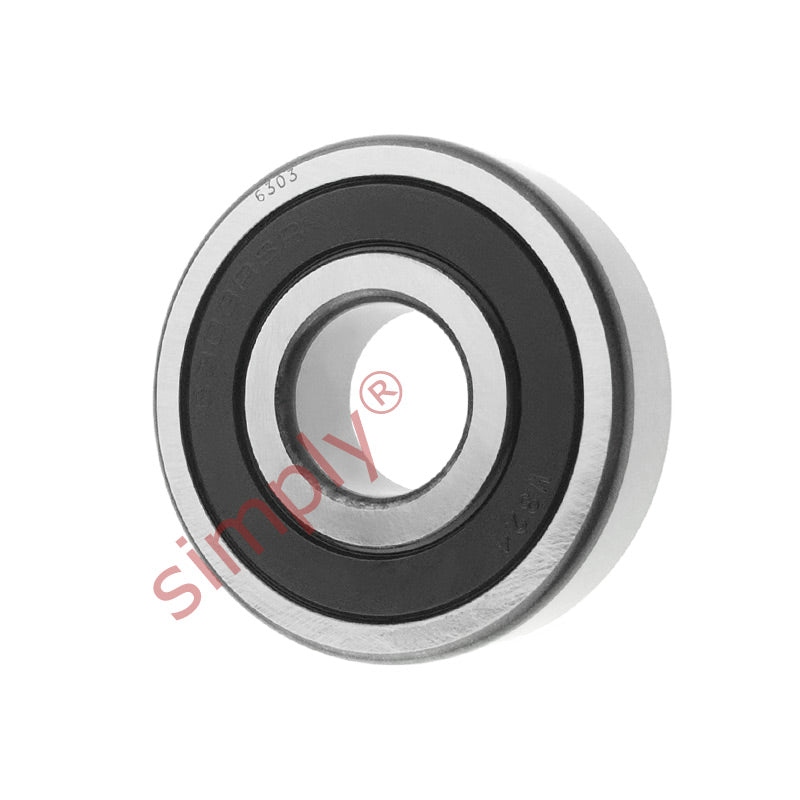

63032RS Budget Rubber Sealed Deep Groove Ball Bearing 17x47x14mm
Equivalent to: 6303NSE 6303DU 6303RS 63032RSH 6303P 6303RSR 6303LU 63032NSE 6303DDU 63032RS 63032RS1 6303PP 63032RSR 6303LLU 63032RS2 6303RS2 63032RS1
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 17mm |
|---|---|
| D | 47mm |
| B | 14mm |
| r min | 1mm |
| Dynamic load Cr | 13.6 kN |
| Static load Cor | 6.65 kN |
| Speed in grease | 15000 rpm |
| Speed in oil | 18000 rpm |
