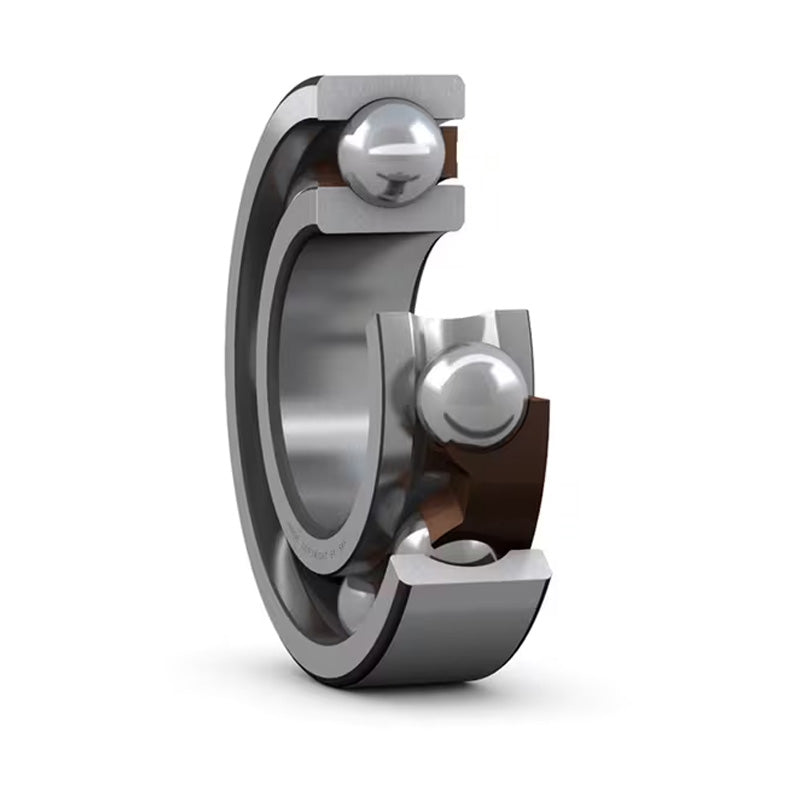

• SKF 6303ETN9C3 Open Deep Groove Ball Bearing with Fibre Cage 17x47x14mm
1 1

SKU: 6303ETN9/C3-SKF

SKF 6303ETN9C3 Open Deep Groove Ball Bearing with Fibre Cage 17x47x14mm

SKF 6303ETN9C3 Open Deep Groove Ball Bearing with Fibre Cage 17x47x14mm
$32.17 ex VAT
$32.17 ex VAT
Sale Sold out

In stock

Price Break
4+ $21.55
10+ $20.34
20+ $20.10
30+ $19.85
50+ $19.61
75+ $19.37
100+ $18.16
200+ $17.92
250+ $17.67
500+ $17.43
1000+ $16.95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Fibre Cage Open Deep Groove Ball Bearings: Manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Fibre cage bearings have a lower co-efficient of friction and are suited to high speed environments
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost effective solution

Brand / Quality:
SKF - High Quality
Inside Diameter:
17mm
Outside Diameter:
47mm
Width:
14mm
Seals / Shields:
None
Clearance:
C3
Technical
d 17mm
D 47mm
B 14mm
Dynamic load 14.3 kN
Static load 6.55 kN
Fatigue load limit Pu 0.275 kN
Reference speed 34000 rpm
Limiting speed 22000 rpm
Weight 0.12 kg
d1 26.5mm
D1 37.4mm
D2 39.7mm
r1r2 min 1mm
da min 22.6mm
Da max 41.4mm
ra max 1mm
Calculation factor kr 0.03
Calculation factor Cor 12
