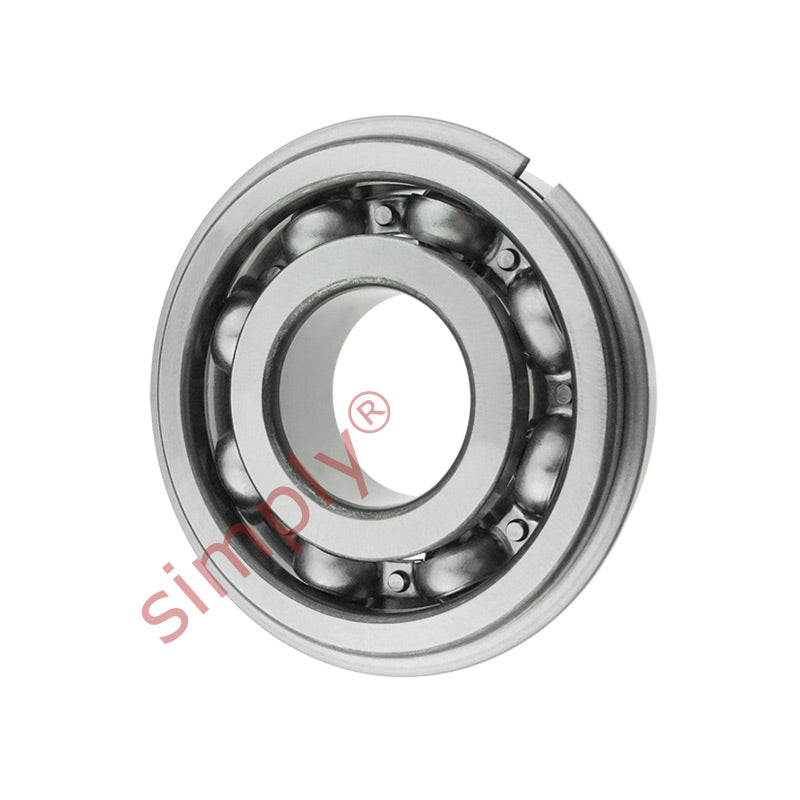

• NSK 6303NR Open Type Deep Groove Ball Bearing With Snap Ring 17x47x14mm
  • NSK
1 2

SKU: 6303NR-NSK

NSK 6303NR Open Type Deep Groove Ball Bearing With Snap Ring 17x47x14mm

NSK 6303NR Open Type Deep Groove Ball Bearing With Snap Ring 17x47x14mm
$19.85 ex VAT
$19.85 ex VAT
Sale Sold out

In stock

Price Break
4+ $13.30
10+ $12.55
20+ $12.40
30+ $12.25
50+ $12.10
75+ $11.95
100+ $11.21
200+ $11.06
250+ $10.91
500+ $10.76
1000+ $10.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Snap ring location in housings, Rubber and Metal Sealed versions available

Brand / Quality:
NSK - High Quality
Inside Diameter:
17mm
Outside Diameter:
47mm
Width:
14mm
Seals / Shields:
None
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
d 17mm
D 47mm
B 14mm
r min 1mm
Dynamic load Cr 13600 N (1390 kgf)
Static load Cor 6650 N (675 kgf)
Factor 12.4
Speed in grease 15000 rpm
Speed in oil 18000 rpm
a max 2.46mm
b min 1.35mm
D1 max 44.6mm
ro max 0.4mm
rN min 0.5mm
D2 max 52.7mm
f max 1.12mm
da2 min 22mm
da2max 25.5mm
Da2max 42mm
ra max 1mm
Dx min 53.5mm
Cy max 3.3mm
Weight 0.113 kg
