SKU: 6304-2RS/C3-CDX

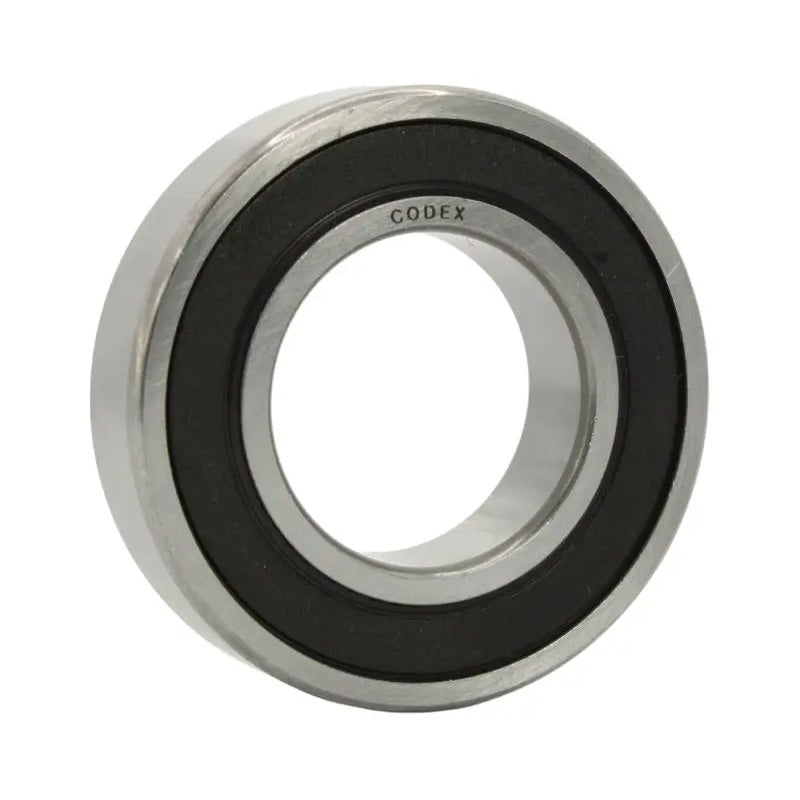

Codex 63042RSC3 Rubber Sealed Deep Groove Ball Bearing 20x52x15mm

Name: Codex 63042RSC3 Rubber Sealed Deep Groove Ball Bearing 20x52x15mm
Brand: Codex
SKU: 6304-2RS/C3-CDX
Price: 9.67 USD
Availability: InStock

$9.67 ex VAT

Sale Sold out

Equivalent to: 63042RSC3 63042RSHC3 63042RS1C3 63042RSRC3 63042RSLC3 6304LFSC3 6304EEC3 6304DUC3 6304LLUC3 EL202RSC3 6304PPC3

In stock

Price Break

4+ $6.48

10+ $6.12

20+ $6.04

30+ $5.97

50+ $5.90

75+ $5.83

100+ $5.46

200+ $5.39

250+ $5.32

500+ $5.24

1000+ $5.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 20mm
Outside Diameter:: 52mm
Width:: 15mm
Seals / Shields:: Rubber Sealed
Clearance:: C3

Technical

d	20mm
D	52mm
B	15mm
Dynamic load C	16.8 kN
Static load Co	7.8 kN
Fatigue load limit Pu	0.335
Reference speed	30000 rpm
Limiting speed	9500 rpm
Weight	0.14 kg
d1	-mm
D2	44.8mm
r1r2	1.1mm
da min	27mm
Da max	45mm
ra max	1mm
Calc factor kr	0.03
Calc factor Cor f0	12
