SKU: 6304-2RS1NR-MB

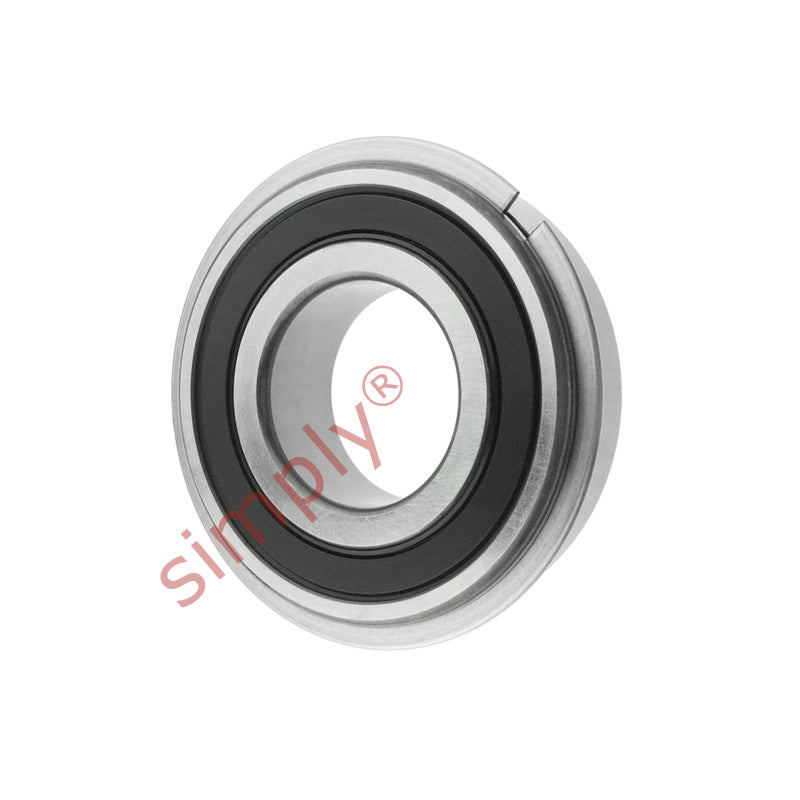

Major Branded 63042RS1NR Rubber Sealed Snap Ring Deep Groove Ball Bearing 20x52x15mm
Major Branded 63042RS1NR Rubber Sealed Snap Ring Deep Groove Ball Bearing 20x52x15mm
Regular price
$24.54
ex VAT
Regular price
Sale price
$24.54
ex VAT
Equivalent to: 6304-2NSE9NRCM 63042RSHNRGJN
In stock
Price Break
10+
$16.44
19+
$15.51
29+
$15.33
39+
$15.14
49+
$14.96
74+
$14.77
99+
$13.85
199+
$13.67
249+
$13.48
499+
$13.30
999+
$12.93
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dynamic load C | 16.8 kN |
| Static load Co | 7.8 kN |
| Fatigue load limit Pu | 0.335 kN |
| Reference speed | 30000 rpm |
| Limiting speed | 9500 rpm |
| Mass | 0.14 kg |
| d2 | 27.2mm |
| D2 | 44.8mm |
| r1r2 min | 1.1mm |
| da min | 27 |
