SKU: 6304-2Z-EU

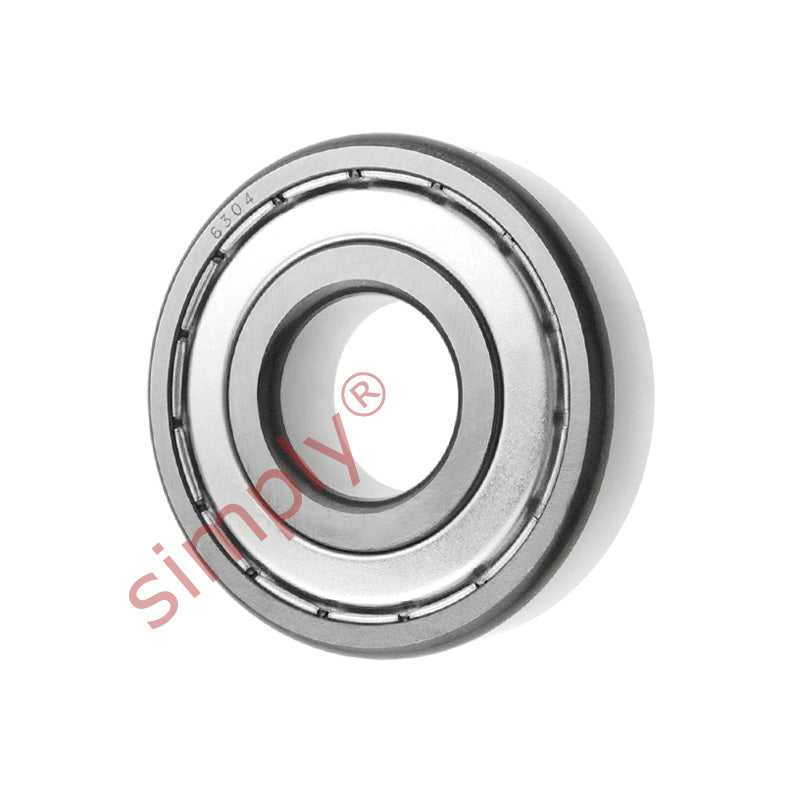

6304ZZ Budget Metal Shielded Deep Groove Ball Bearing 20x52x15mm
Equivalent to: 6304ZZE 6304ZZ 6304.2Z 6304KDD 6304DD 6304FF 63042ZR 6304ZZE 6304ZZ 63042ZR 63042RS2
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 15mm |
| r min | 1.1mm |
| Dynamic load Cr | 15.9 kN |
| Static load Cor | 7.85 kN |
| Speed in grease | 14000 rpm |
| Speed in oil | 17000 rpm |
