SKU: 6304-2Z/VA201-SKF

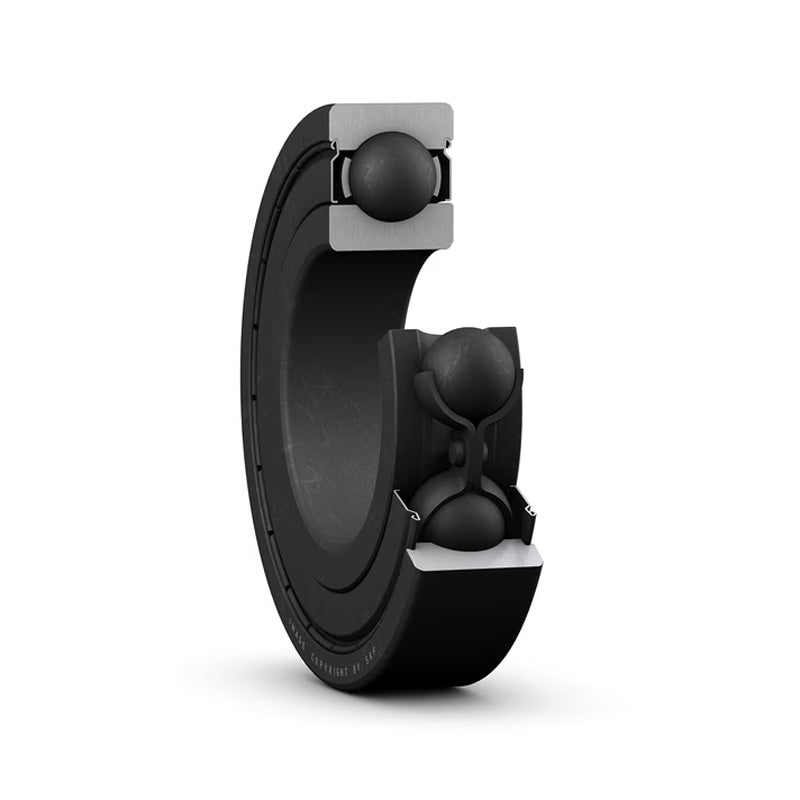

SKF 63042ZVA201 Single Row Deep Groove Ball Bearing High Temperature Type 20x52x15mm

Name: SKF 63042ZVA201 Single Row Deep Groove Ball Bearing High Temperature Type 20x52x15mm
Brand: SKF
SKU: 6304-2Z/VA201-SKF
Price: 108.08 USD
Availability: InStock

$108.08 ex VAT

Sale Sold out

In stock

Price Break

10+ $72.39

19+ $68.32

29+ $67.51

39+ $66.69

49+ $65.88

74+ $65.07

99+ $61.00

199+ $60.19

249+ $59.37

499+ $58.56

999+ $56.93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF VA201 Series High Temperature Bearings: Supplied metal shielded are designed for high temperatures up to + 250 degrees Celsius and down to - 40 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING
Benefits: High temperature resilience, low maintenance

Brand / Quality:: SKF - High Quality
Inside Diameter:: 20mm
Outside Diameter:: 52mm
Width:: 15mm
Seals / Shields:: Metal Shielded
Clearance:: * Standard

Technical

d	20mm
D	52mm
B	15mm
d1	30.3mm
D2	44.8mm
r1r2	1.1mm
Basic load rating Co	7.8 kN
Weight	0.13 kg
Max operating temp	+250 deg C
Min operating temp	-40 deg C
Recommended max speed	100 rpm
